Sensor-Variable Line Pressure: Installation

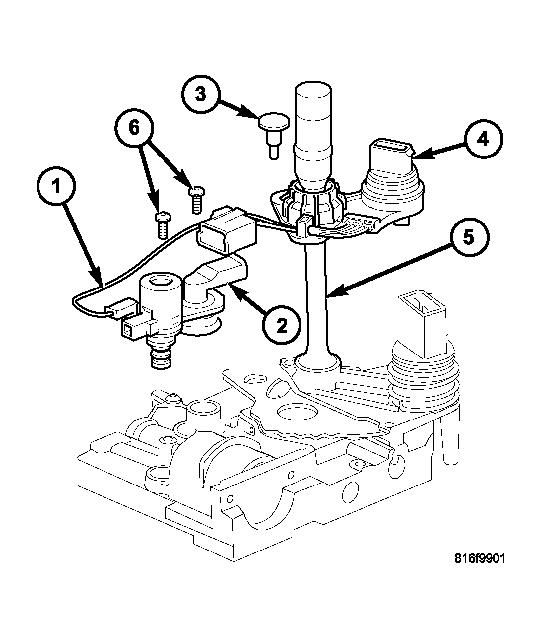

Fig 1: Identifying Variable Line Pressure Sensor & Pressure Control Solenoid

Courtesy of CHRYSLER LLC

1 - PRESSURE CONTROL SOLENOID

2 - LINE PRESSURE SENSOR

3 - SHOULDER SCREW

4 - VARIABLE LINE PRESSURE HEADER

5 - MANUAL SHAFT

6 - SCREWS

1. Install the pressure control solenoid (1) and line pressure sensor (2) into the valve body. See Fig 1.
2. Install the screws (6) to hold the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
3. Install the electrical connectors to the pressure control solenoid (1) and the line pressure sensor (2).
4. Install the valve body into the transmission. See INSTALLATION .
