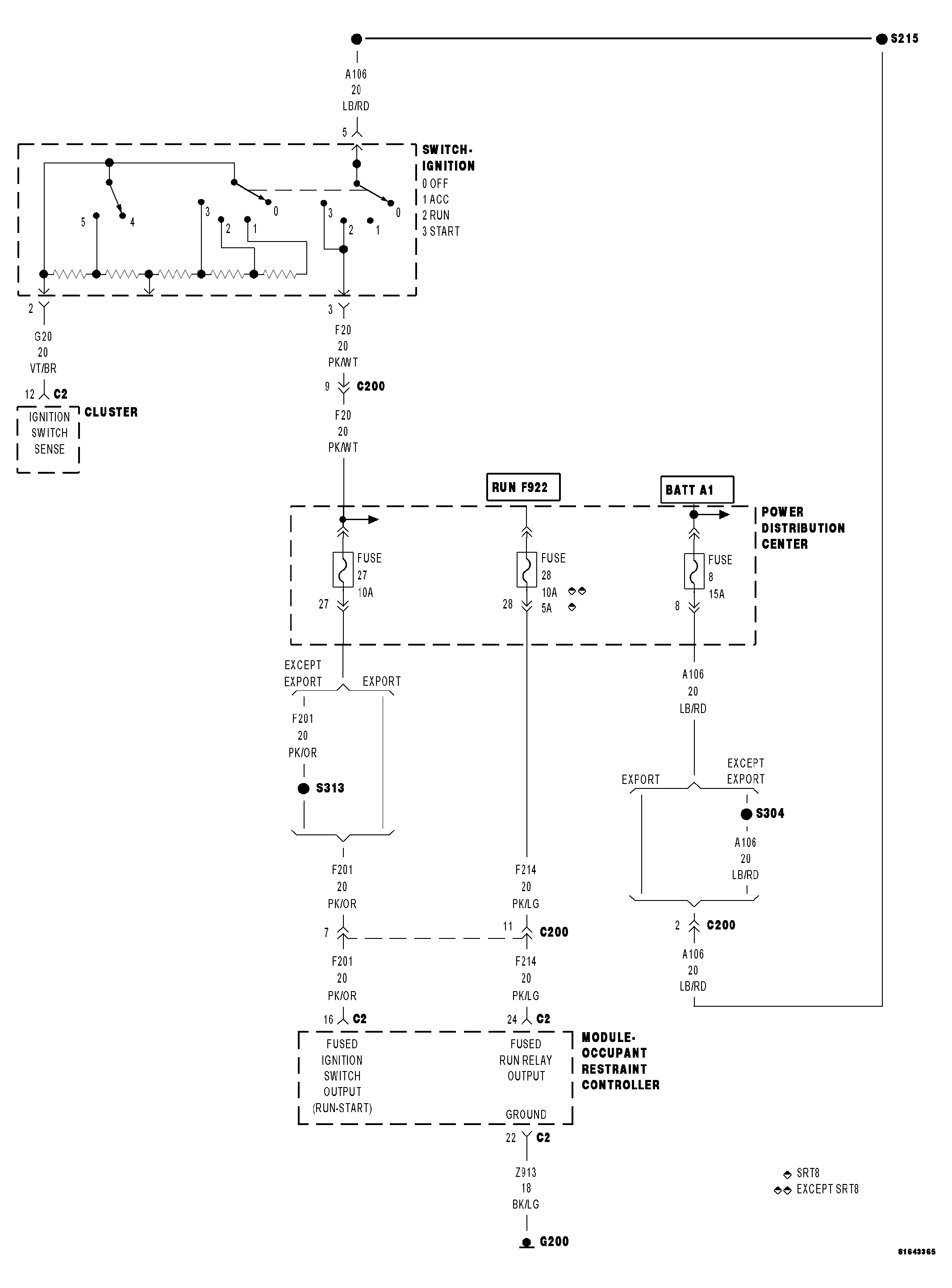

Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> Restraints - Electrical Diagnostics >> DTC Troubleshooting >> B212C - Ignition Run/Start Input Circuit Open >> Circuit Schematic
