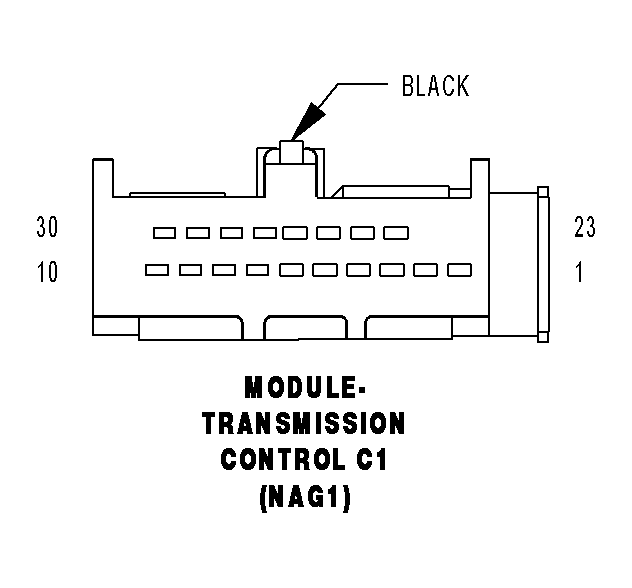

Transmission Control Module (NAG1) Connector End View (C1)
MODULE-TRANSMISSION CONTROL C1 (NAG1) - BLACK 18 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | F942 18PK/BK | FUSED TRANSMISSION RELAY OUTPUT |
| 30 | Z912 18BK/OR (LHD EXCEPT POLICE) | GROUND |
| 30 | Z910 18BK/TN (RHD/POLICE) | GROUND |
