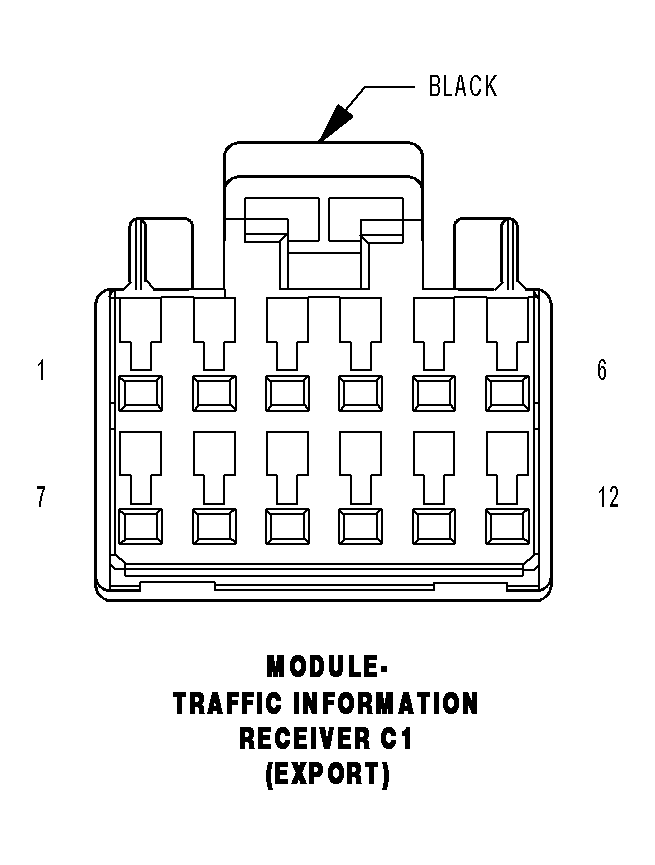

Traffic Information Receiver Module (Export) Connector End View (C1)

MODULE-TRAFFIC INFORMATION RECEIVER C1 (EXPORT) - BLACK 12 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	D55 20WT/OR	CAN B BUS (+)
3	-	-
4	-	-
5	-	-
6	A300 20GY/LG	FUSED B(+) (I.O.D.)
7	Z909 20BK	GROUND
8	D54 20WT	CAN B BUS (-)
9	-	-
10	-	-
11	-	-
12	-	-
