Memory Set Switch Connector End View

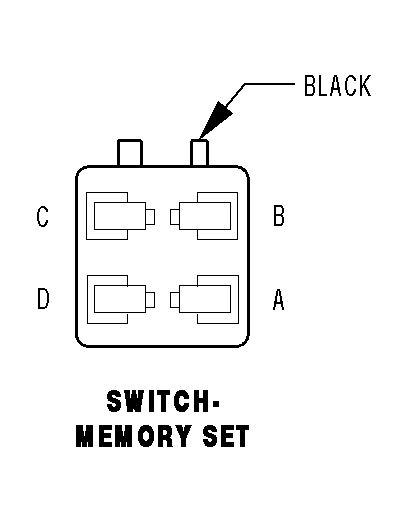

SWITCH-MEMORY SET - BLACK 4 WAY

GCLX680398Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A - -
B G920 20VT/YL MEMORY SELECT SWITCH RETURN
C G200 20VT/BR MEMORY SELECT SWITCH MUX
D - -
