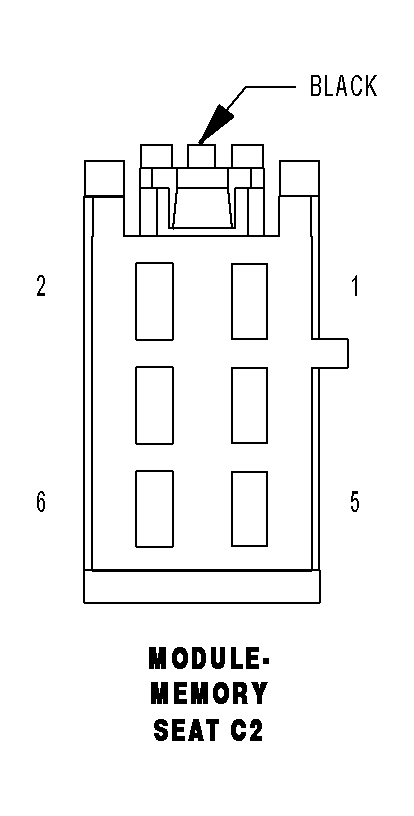

Memory Seat Module Connector End View (C2)
MODULE-MEMORY SEAT C2 - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G493 20OR/VT |
DRIVER SEAT RECLINER POSITION SENSOR GROUND |
| 2 |
P141 18LG/BR |
DRIVER SEAT RECLINER UP DRIVER |
| 3 |
- |
- |
| 4 |
P143 18LG/GY |
DRIVER SEAT RECLINER DOWN DRIVER |
| 5 |
G403 20VT/OR |
DRIVER SEAT RECLINER POSITION SENSE |
| 6 |
- |
- |
