Interface Police/Taxi Module Connector End View (C1)

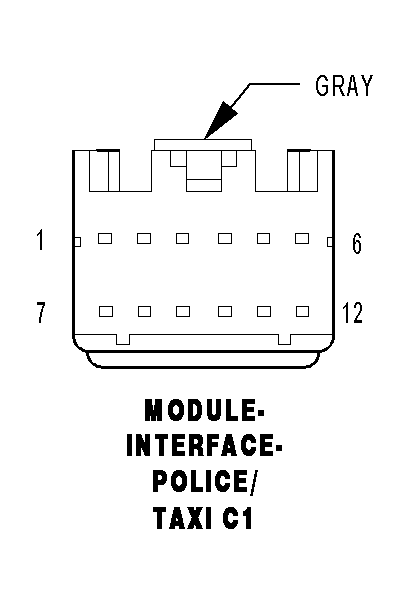

MODULE-INTERFACE-POLICE/TAXI C1 - GRAY 12 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A913 20RD/GY |
FUSED B(+) |
| 2 |
D55 20WT/OR |
CAN B BUS (+) |
| 3 |
D54 20WT |
CAN B BUS (-) |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
Z910 20BK/TN |
GROUND |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
