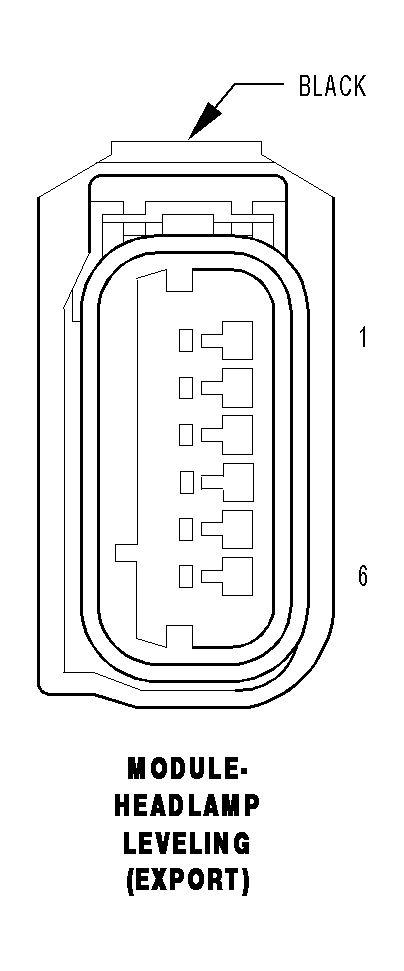

Headlamp Leveling Module (Export) Connector End View
MODULE-HEADLAMP LEVELING (EXPORT) - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F500 20DG/PK |
FUSED RUN RELAY OUTPUT |
| 2 |
D205 20WT/DB |
SCI RECEIVE (LEFT HID LAMP) |
| 3 |
Z901 20BK/DG |
GROUND |
| 4 |
D55 20WT/OR |
CAN B BUS (+) |
| 5 |
D211 20WT/RD |
SCI RECEIVE (RIGHT HID LAMP) |
| 6 |
D54 20WT |
CAN B BUS (-) |
