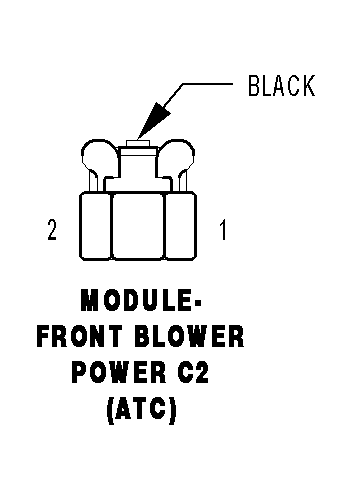

Front Blower Power Module (Automatic Temperature Control) Connector End View (C2)

MODULE-FRONT BLOWER POWER C2 (ATC) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C7 12DB	BLOWER MOTOR SUPPLY
2	Z134 12BK/LG	GROUND
