Front Blower Power Module (Automatic Temperature Control) Connector End View (C1)

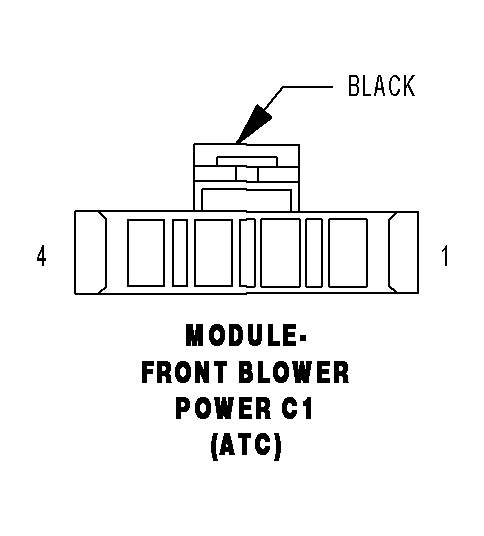

MODULE-FRONT BLOWER POWER C1 (ATC) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Z908 12BK |
GROUND |
| 3 |
C56 20DB/LB |
FRONT BLOWER CONTROL |
| 4 |
C7 12DB |
FUSED RUN RELAY OUTPUT |
