Engine Control Module (Diesel) Connector End View (C1)

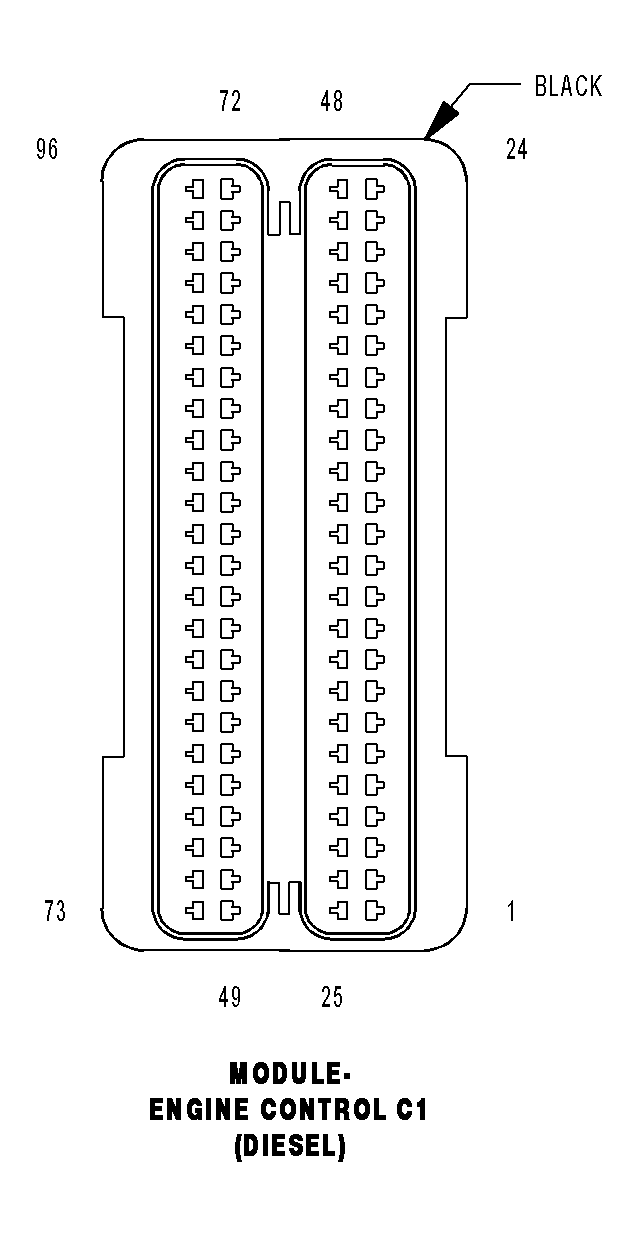

MODULE-ENGINE CONTROL C1 (DIESEL) - BLACK 96 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K11 16BL | FUEL INJECTOR NO. 1 HIGH-SIDE CONTROL |
| 2 | K12 16BL/VT | FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL |
| 3 | K13 16BL/RD | FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL |
| 4 | - | - |
| 5 | - | - |
| 6 | K902 20GY/WT | O2 1/1 PUMP CELL CURRENT TRIM |
| 7 | K844 20RD/VT | CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY |
| 8 | K900 20BR/RD | INLET AIR PRESSURE SENSOR GROUND |
| 9 | K934 20OR | EXHAUST GAS PRESSURE SENSOR GROUND |
| 10 | K944 20BR/DG | CAMSHAFT POSITION SENSOR GROUND |
| 11 | K312 20GY/OR | EGR AIR FLOW CONTROL VALVE POSITION SENSOR SIGNAL |
| 12 | N116 18BR/VT | CRANKCASE VENT HEATER CONTROL |
| 13 | - | - |
| 14 | - | - |
| 15 | K853 20RD/VT | CRANKSHAFT POSITION SENSOR 5 VOLT SUPPLY |
| 16 | - | - |
| 17 | - | - |
| 18 | F858 20GY/YL | EXHAUST GAS PRESSURE SENSOR 5 VOLT SUPPLY |
| 19 | K356 20RD/BK | BOOST PRESSURE SENSOR 5 VOLT SUPPLY |
| 20 | N117 20GY | INTAKE SWIRL SERVO MOTOR CONTROL |
| 21 | - | - |
| 22 | X635 20GY/DG | BOOST PRESSURE SERVO MOTOR CONTROL |
| 23 | K369 18RD/GY | FUEL PRESSURE SOLENOID 12 VOLT SUPPLY |
| 24 | K315 20GY/PK | EGR AIR FLOW CONTROL VALVE MOTOR (-) |
| 25 | K14 16BL/YL | FUEL INJECTOR NO. 4 HIGH-SIDE CONTROL |
| 26 | K38 16BL/DG | FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL |
| 27 | K58 16BL/WT | FUEL INJECTOR NO. 6 HIGH-SIDE CONTROL |
| 28 | K960 18BR/VT | INTAKE AIR TEMPERATURE SENSOR GROUND |
| 29 | - | - |
| 30 | - | - |
| 31 | K41 20DG/BK | O2 1/1 REFERENCE SIGNAL |
| 32 | - | - |
| 33 | K44 20YL/GY | CAMSHAFT POSITION SENSOR SIGNAL |
| 34 | K358 20GY/BL | OIL LEVEL SWITCH SIGNAL |
| 35 | - | - |
| 36 | - | - |
| 37 | K957 18BR | MASS AIR FLOW SENSOR GROUND |
| 38 | - | - |
| 39 | G224 20YL/GY | OIL TEMPERATURE SENSOR SIGNAL |
| 40 | F851 20DG | OIL PRESSURE SENSOR 5 VOLT SUPPLY |
| 41 | K313 20DG/GY | EGR AIR FLOW CONTROL VALVE POSITION SENSOR SUPPLY |
| 42 | K668 20BR/BK | INLET AIR PRESSURE SENSOR 5 VOLT SUPPLY |
| 43 | K350 20RD/WT | FUEL PRESSURE SENSOR 5 VOLT SUPPLY |
| 44 | - | - |
| 45 | - | - |
| 46 | - | - |
| 47 | K366 18BK/BL/DG | FUEL QUANTITY SOLENOID 12 VOLT SUPPLY |
| 48 | K99 16GY/BR | O2 1/1 HEATER CONTROL |
| 49 | K638 16BK/DG | FUEL INJECTOR NO. 5 LOW-SIDE CONTROL |
| 50 | K611 16BK/BL | FUEL INJECTOR NO. 1 LOW-SIDE CONTROL |
| 51 | K658 16BK/WT | FUEL INJECTOR NO. 6 LOW-SIDE CONTROL |
| 52 | K222 20BR/RD | ENGINE COOLANT TEMPERATURE SENSOR GROUND |
| 53 | Z753 16BR/BK | CRANKSHAFT POSITION SENSOR GROUND |
| 54 | - | - |
| 55 | - | - |
| 56 | K914 20BL/DG | FUEL TEMPERATURE SENSOR GROUND |
| 57 | Z42 20DG/BL | O2 1/1 NEGATIVE CURRENT CONTROL |
| 58 | - | - |
| 59 | - | - |
| 60 | K2 20DG/RD | ENGINE COOLANT TEMPERATURE SENSOR SIGNAL |
| 61 | K156 20BL/RD | FUEL TEMPERATURE SENSOR SIGNAL |
| 62 | K916 20BR/WT | PRE-CATALYST EXHAUST GAS TEMPERATURE SENSOR GROUND |
| 63 | K915 20BR/WT | POST-CATALYST EXHAUST GAS TEMPERATURE SENSOR GROUND |
| 64 | K359 20GY/BR | FUEL PRESSURE SENSOR GROUND |
| 65 | K181 20DG/VT | FUEL PRESSURE SENSOR SIGNAL |
| 66 | K157 20BL/YL | MASS AIR FLOW SENSOR SIGNAL |
| 67 | K390 20DG/PK | EGR AIR FLOW CONTROL VALVE POSITION SENSOR RETURN |
| 68 | - | - |
| 69 | - | - |
| 70 | - | - |
| 71 | K34 20GY/YL | EGR SOLENOID CONTROL |
| 72 | K314 20GY/RD | EGR AIR FLOW CONTROL VALVE MOTOR (+) |
| 73 | K612 16BK/VT | FUEL INJECTOR NO. 2 LOW-SIDE CONTROL |
| 74 | K613 16BK/RD | FUEL INJECTOR NO. 3 LOW-SIDE CONTROL |
| 75 | K614 16BK/YL | FUEL INJECTOR NO. 4 LOW-SIDE CONTROL |
| 76 | Z36 20YL/DG | OIL TEMPERATURE SENSOR GROUND |
| 77 | K24 16DG/WT | CRANKSHAFT POSITION SENSOR SIGNAL |
| 78 | K936 20GY/PK | OIL PRESSURE SENSOR GROUND |
| 79 | - | - |
| 80 | K43 20GY/RD | O2 1/1 POSITIVE CURRENT CONTROL |
| 81 | K35 20GY/BK | EXHAUST GAS PRESSURE SENSOR SIGNAL |
| 82 | K37 20GY/YL | BOOST PRESSURE SENSOR SIGNAL |
| 83 | K352 20YL | PRE-CATALYST EXHAUST GAS TEMPERATURE SENSOR SIGNAL |
| 84 | K21 20DG/WT | INTAKE AIR TEMPERATURE SENSOR SIGNAL |
| 85 | K68 20RD/BL | INLET AIR PRESSURE SENSOR SIGNAL |
| 86 | - | - |
| 87 | K656 20BR/GY | BOOST PRESSURE SENSOR GROUND |
| 88 | D509 20WT/BL | ECM LIN BUS |
| 89 | K353 20YL/WT | POST-CATALYST EXHAUST GAS TEMPERATURE SENSOR SIGNAL |
| 90 | K362 20DG/YL | INLET AIR TEMPERATURE SENSOR SIGNAL |
| 91 | - | - |
| 92 | - | - |
| 93 | K370 18BK/WT | FUEL PRESSURE SOLENOID CONTROL |
| 94 | K365 18YL/BK | FUEL QUANTITY SOLENOID CONTROL |
| 95 | - | - |
| 96 | - | - |
