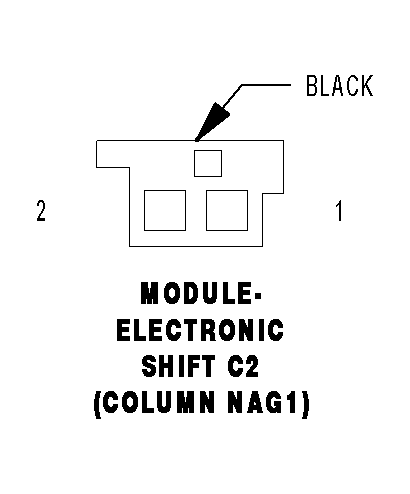

Electronic Shift Column NAG1 Module Connector End View (C2)

MODULE-ELECTRONIC SHIFT C2 (COLUMN NAG1) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K321 24BK	BTSI SOLENOID CONTROL
2	F902 24BK	IGNITION UNLOCK-RUN-START
