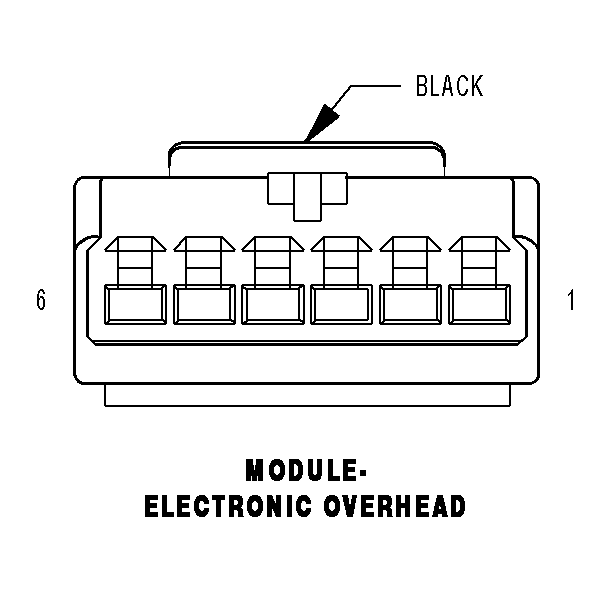

Electronic Overhead Module Connector End View
MODULE-ELECTRONIC OVERHEAD - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | D55 20WT/OR | CAN B BUS (+) |
| 2 | D54 20WT | CAN B BUS (-) |
| 3 | A117 20RD/DG | FUSED B(+) (I.O.D.) |
| 4 | Z909 20BK/LG | GROUND |
| 5 | F880 20PK (EXCEPT RHD SUNROOF) | FUSED ACCESSORY DELAY RELAY OUTPUT |
| 5 | F880 20PK/DG (RHD SUNROOF) | FUSED ACCESSORY DELAY RELAY OUTPUT |
| 6 | - | - |
