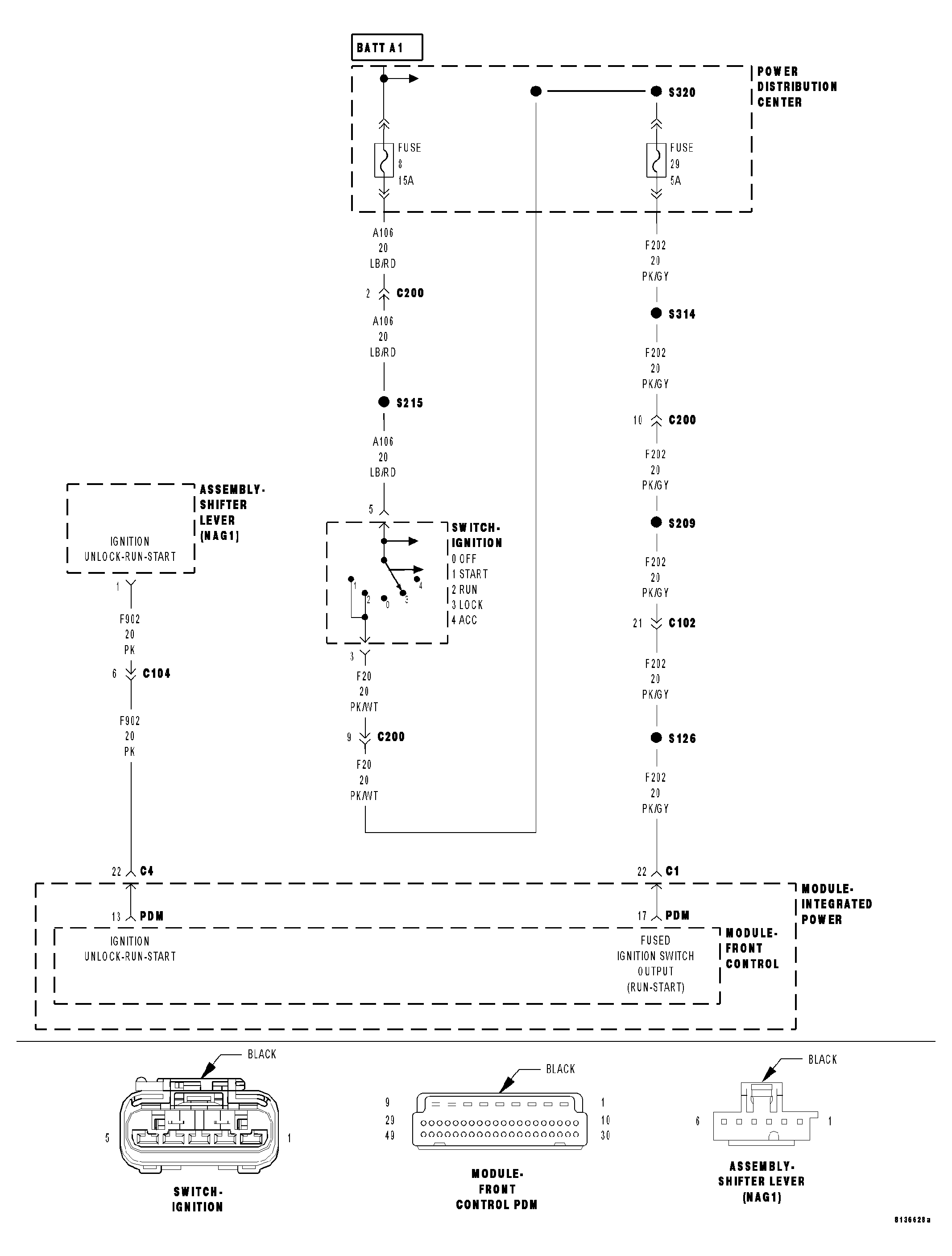

Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> Ignition System >> Ignition System - Electrical Diagnostics >> Ignition System - Electrical Diagnostics >> DTC Troubleshooting >> B2104-Ignition Unlock Run/Start Control Circuit Low >> Circuit Schematic
