Module - Front Wiper

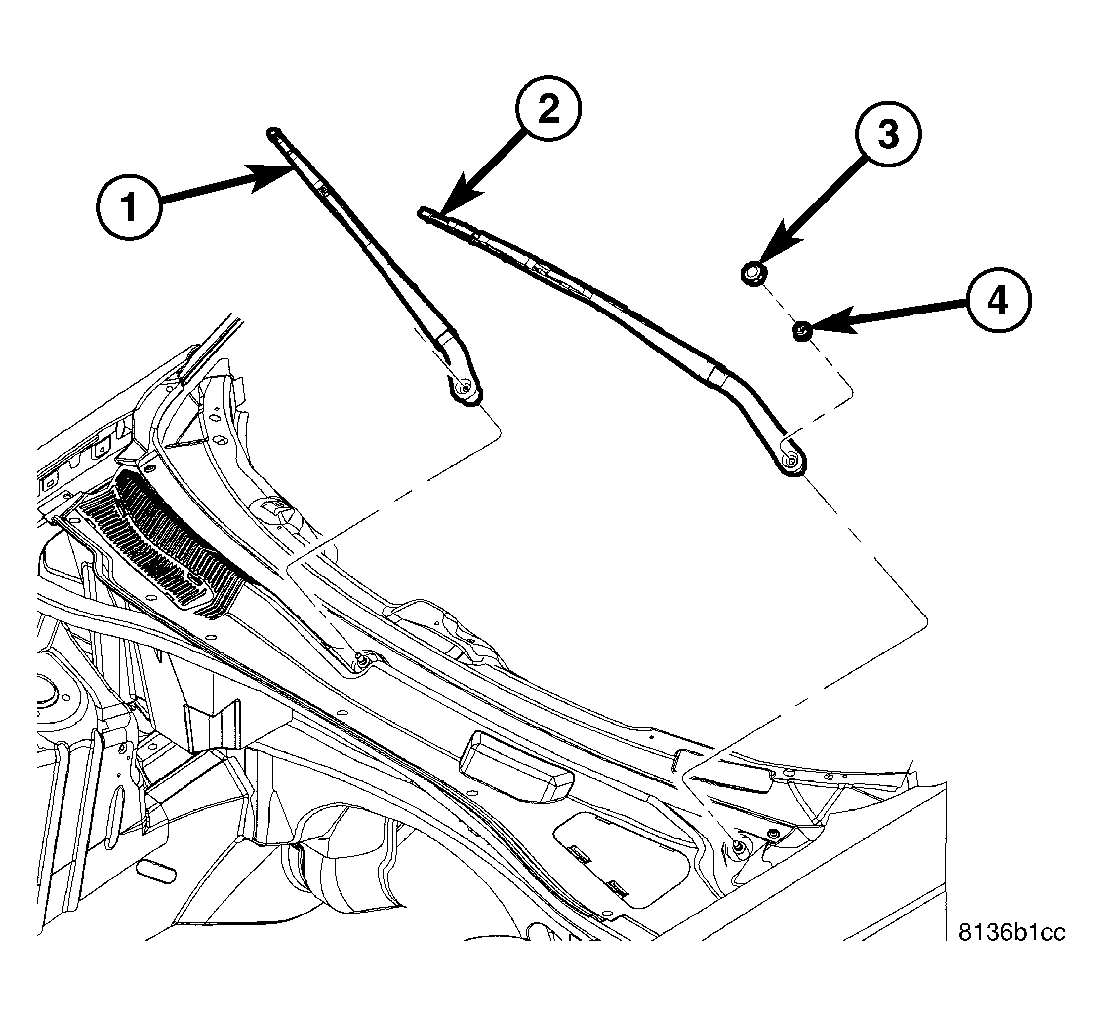

Fig 1: Removing/Installing Front Wiper Arms
GC0016715Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the wiper arms (1) and (2). See REMOVAL .

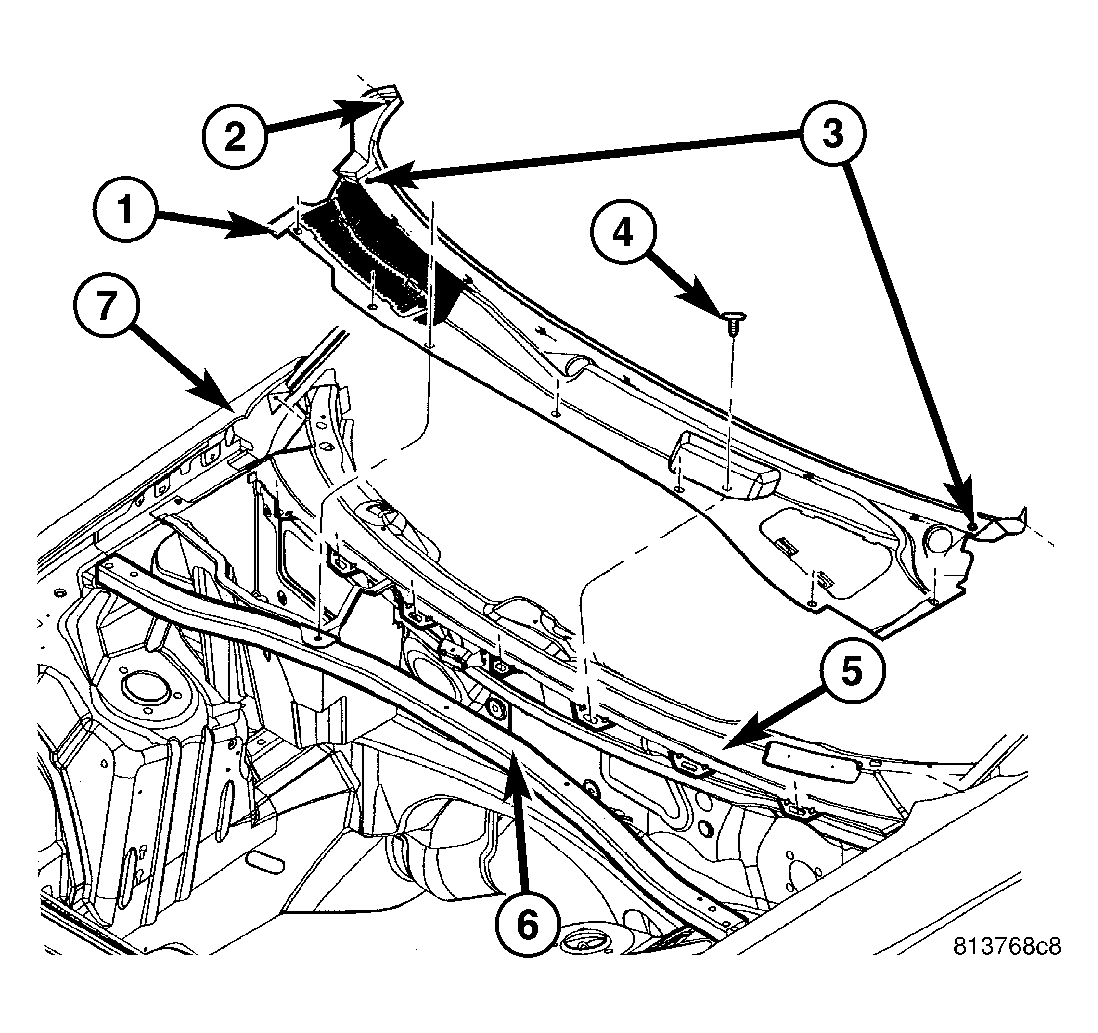

    Fig 2: Removing/Installing Cowl Panel
    GC0013423Courtesy of CHRYSLER LLC
  3. Remove the cowl panel (1). Refer to REMOVAL .

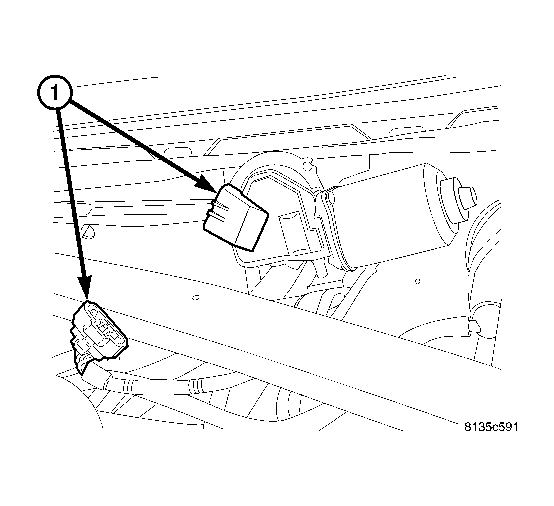

    Fig 3: Wiper Motor Electrical Connector
    GC0016714Courtesy of CHRYSLER LLC
  4. Disconnect the wiper motor electrical connector (1).

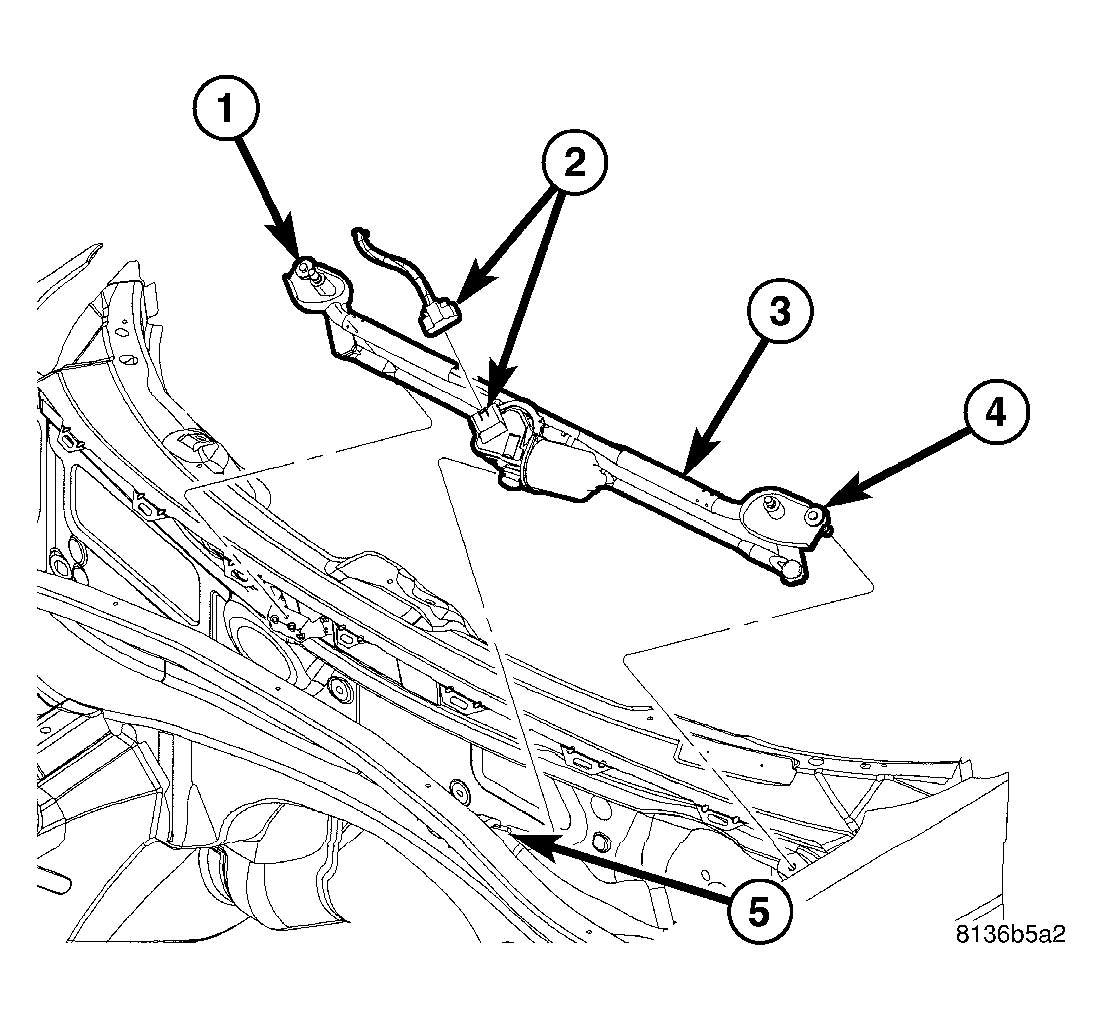

    Fig 4: Removing/Installing Wiper Module
    GC0016710Courtesy of CHRYSLER LLC
  5. Remove the two retaining bolts (1 and 4) and remove wiper module (3) from vehicle.
