Module - Adaptive Cruise Control

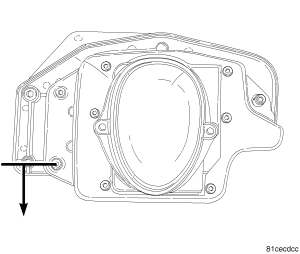

SENSOR HEIGHT: measure from the ground to the center of the ballscrew shown on the adaptive cruise control module.

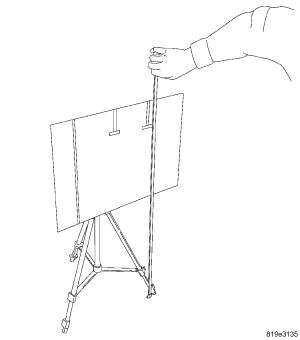

BOARD HEIGHT: measure from the ground to the top of the Alignment Board.
ADAPTIVE CRUISE CONTROL AIMING CHART
| SENSOR HEIGHT | BOARD HEIGHT |
|---|---|
| HEIGHT SPECIFICATIONS MEASURED IN MILLIMETERS | |
| 651 | 853 |
| 652 | 854 |
| 653, 654 | 855 |
| 655, 656 | 856 |
| 657, 658 | 857 |
| 659 | 858 |
| 660, 661 | 859 |
| 662, 663 | 860 |
| 664 | 861 |
| 665, 666 | 862 |
| 667, 668 | 863 |
| 669 | 864 |
| 670, 671 | 865 |
| 672, 673 | 866 |
| 674 | 867 |
| 675, 676 | 868 |
| 677, 678 | 869 |
| 679, 680 | 870 |
| 681 | 871 |
| 682, 683 | 872 |
| 684, 685 | 873 |
| 686 | 874 |
| 687, 688 | 875 |
| 689, 690 | 876 |
| 691 | 877 |
| 692, 693 | 878 |
| 694, 695 | 879 |
| 696, 697 | 880 |
| 698 | 881 |
| 699, 700 | 882 |
| 701, 702 | 883 |
| 703 | 884 |
| 704, 705 | 885 |
| 706, 707 | 886 |
| 708 | 887 |
| 709, 710 | 888 |
| 711, 712 | 889 |
| 713 | 890 |
| 714, 715 | 891 |
| 716, 717 | 892 |
| 718, 719 | 893 |
| 720 | 894 |
| 721, 722 | 895 |
| 723, 724 | 896 |
| 725 | 897 |
| 726, 727 | 898 |
| 728, 729 | 899 |
| 730, 731 | 900 |
| 732, 733 | 901 |
| 734 | 902 |
| 735, 736 | 903 |
| 737, 738 | 904 |
| 739, 740 | 905 |
| 741 | 906 |
| 742 | 907 |
