Module - Adaptive Cruise Control

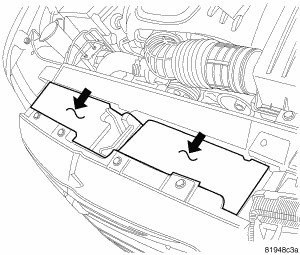

Fig 1: Air Dams
GC0052577Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove air dam panels.
    Fig 2: Air Dams Removed
    GC0052578Courtesy of CHRYSLER LLC
  3. Air dam panels removed.

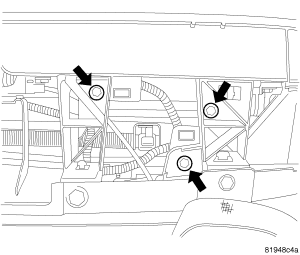

    Fig 3: Mounting Bolts
    GC0052579Courtesy of CHRYSLER LLC
  4. Remove 3 mounting bolts.
  5. Remove module/sensor assembly.

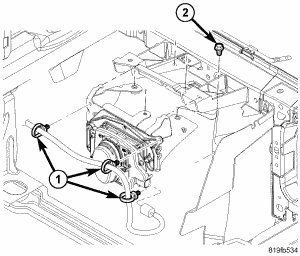

    Fig 4: Wiring Clip Location
    GC0052580Courtesy of CHRYSLER LLC
  6. Remove wiring harness clips from bracket and radiator side shield.

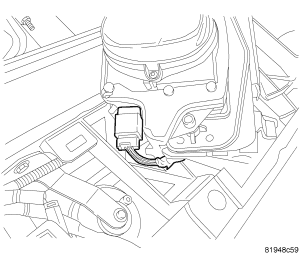

    Fig 5: Wiring Connector
    GC0052581Courtesy of CHRYSLER LLC
  7. Disconnect electrical connector.
  8. Remove assembly.
