Module - Seat Memory: Installation

CAUTION: The Memory Seat Module (MSM) mounting tabs can be damaged during module installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

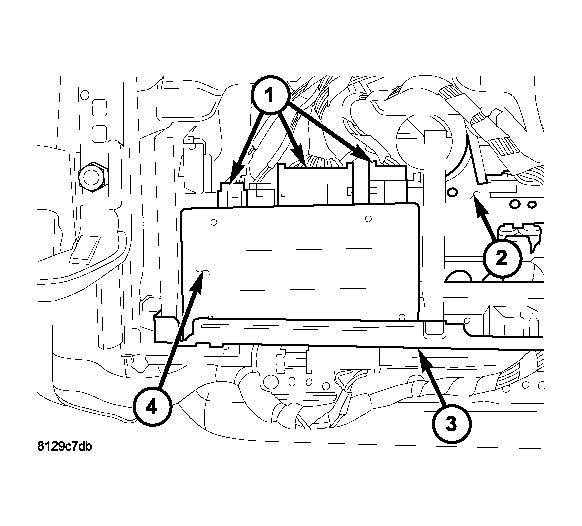

Fig 1: Removing/Installing Memory Seat Module
GC0015860Courtesy of CHRYSLER LLC
  1. Place the Memory Seat Module (MSM) (4) into position making sure the mounting tabs are properly aligned with the front bracket.
  2. Push down on the rear of the MSM (4) snapping the retaining clips into place in the side brackets.
  3. Connect the MSM rear harness connectors (1).
  4. Connect the MSM front harness connectors.
  5. Install the driver seat cushion/cover (2). Refer to INSTALLATION .
  6. Connect the battery negative cable.
  7. Using an appropriate scan tool go to the MSM miscellaneous functions and perform the standardization routine.
  8. Verify system and vehicle operation.
