Powertrain Control Module (Pcm)

USE THE SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.

To avoid possible voltage spike damage to PCM, ignition key must be off, and negative battery cable must be disconnected before unplugging PCM connectors.

Fig 1: PCM Location In Vehicle

Courtesy of CHRYSLER LLC

1. Disconnect negative battery cable.

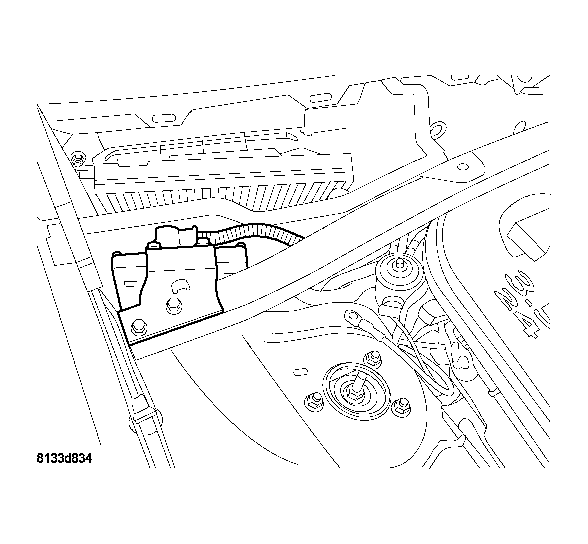

   Fig 2: PCM Location

   Courtesy of CHRYSLER LLC
2. Remove PCM bracket-to-body mounting bolt.
3. Remove assembly from vehicle.
4. Unlock and disconnect the electrical connectors from PCM.

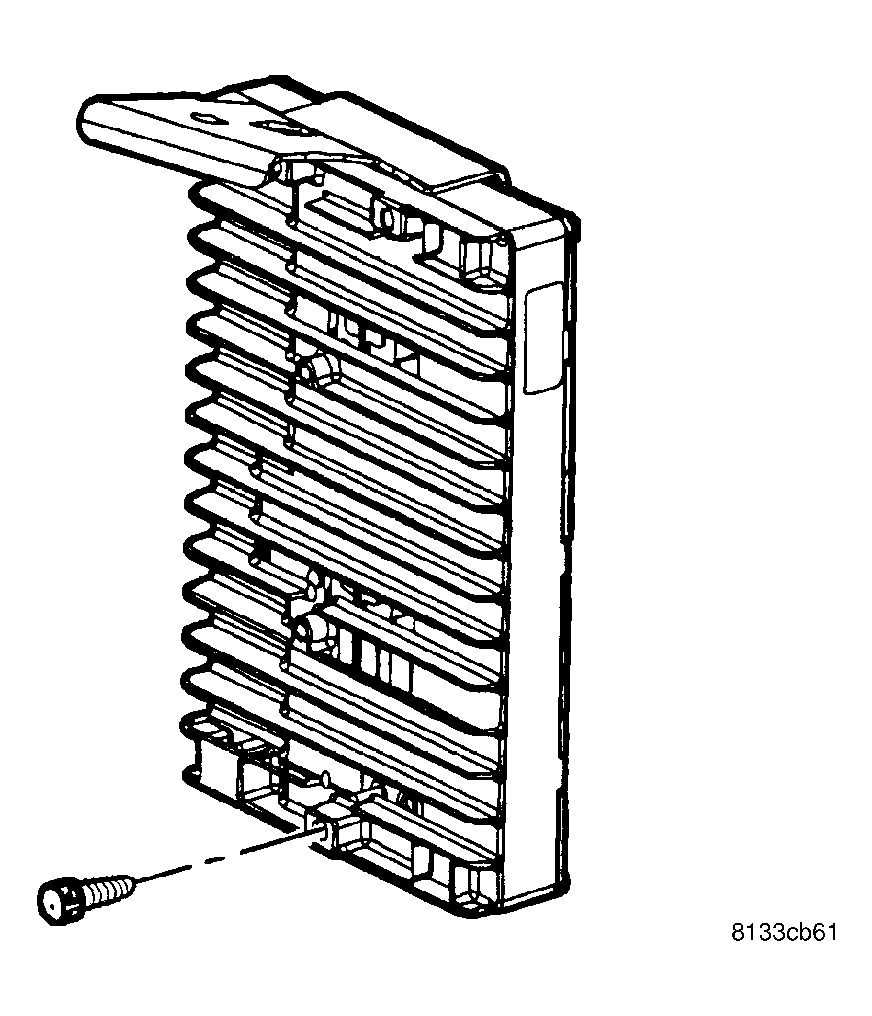

   Fig 3: PCM Bracket

   Courtesy of CHRYSLER LLC
5. Remove bracket from PCM.
   Fig 4: Rubber Bumper

   Courtesy of CHRYSLER LLC
6. Remove the rubber bumper from PCM.
