Module - Glow Plug: Installation

  1. Install the Glow Plug Module.

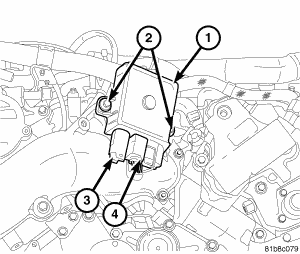

    Fig 1: Glow Plug Module
    GC0052482Courtesy of CHRYSLER LLC
  2. Install the two Glow Plug Module bolts (2).
  3. Connect the battery positive harness connector (3) to the Glow Plug Module.
  4. Connect the Glow Plug Module wiring harness connector (4).
  5. Connect negative battery cable.
