Module-Front Control

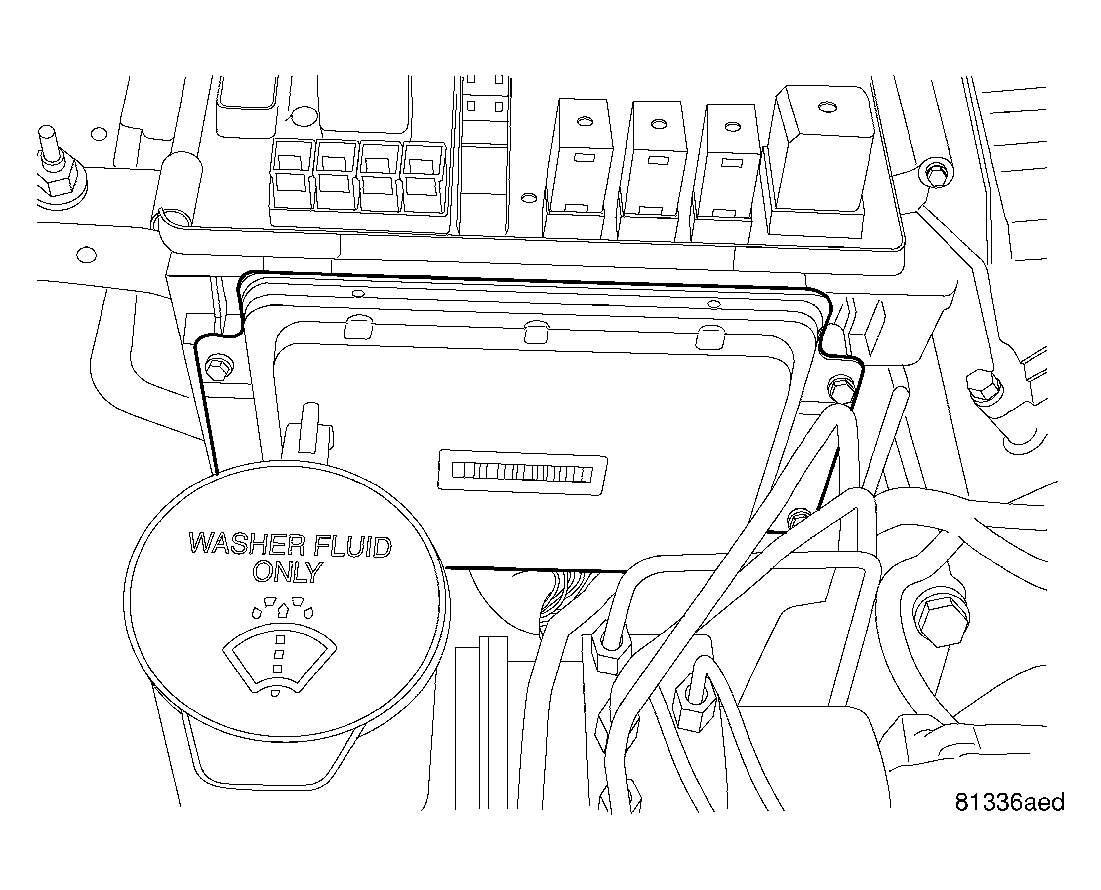

Fig 1: The Front Control Module Location
GC0015856Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Disconnect and isolate the battery negative cable.
  2. Remove mounting fasteners.
  3. Disconnect electrical connectors and remove Front Control Module (FCM).
