Module-Front Control

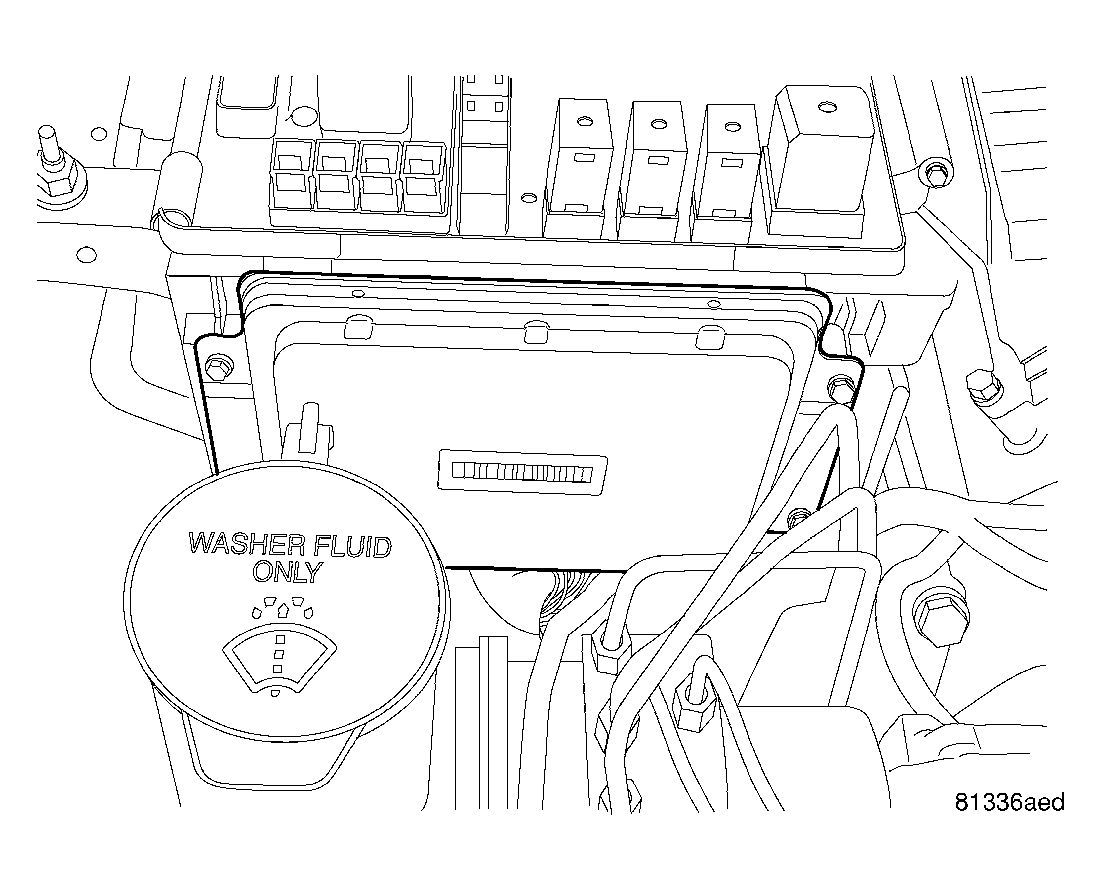

Fig 1: The Front Control Module Location
GC0015857Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Position Front Control Module (FCM) and connect electrical connectors.
  2. Install and tighten mounting fasteners.
  3. Connect battery negative cable.
