Metric System: Description
WARNING: This page is about a different car, the 2007 Dodge Grand Caravan, 2007 Dodge Caravan, and 2007 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
The metric system is based on quantities of one, ten, one hundred, one thousand and one million.
The following chart will assist in converting metric units to equivalent English and SAE units, or vise versa.
CONVERSION FORMULAS AND EQUIVALENT VALUES
| MULTIPLY | BY | TO GET | MULTIPLY | BY | TO GET |
|---|---|---|---|---|---|
| in-lbs | x 0.11298 | = Newton Meters (N.m) | N.m | x 8.851 | = in-lbs |
| ft-lbs | x 1.3558 | = Newton Meters (N.m) | N.m | x 0.7376 | = ft-lbs |
| Inches Hg (60° F) | x 3.377 | = Kilopascals (kPa) | kPa | x 0.2961 | = Inches Hg |
| psi | x 6.895 | = Kilopascals (kPa) | kPa | x 0.145 | = psi |
| Inches | x 25.4 | = Millimeters (mm) | mm | x 0.03937 | = Inches |
| Feet | x 0.3048 | = Meters (M) | M | x 3.281 | = Feet |
| Yards | x 0.9144 | = Meters (M) | M | x 1.0936 | = Yards |
| mph | x 1.6093 | = Kilometers/Hr. (Km/h) | Km/h | x 0.6214 | = mph |
| Feet/Sec | x 0.3048 | = Meters/Sec (M/S) | M/S | x 3.281 | = Feet/Sec |
| mph | x 0.4470 | = Meters/Sec (M/S) | M/S | x 2.237 | = mph |
| Kilometers/Hr. (Km/h) | x 0.27778 | = Meters/Sec (M/S) | M/S | x 3.600 | Kilometers/Hr. (Km/h) |
COMMON METRIC EQUIVALENTS
| Metric Equivalents | |
|---|---|
| 1 inch = 25 Millimeters | 1 Cubic Inch = 16 Cubic Centimeters |
| 1 Foot = 0.3 Meter | 1 Cubic Foot = 0.03 Cubic Meter |
| 1 Yard = 0.9 Meter | 1 Cubic Yard = 0.8 Cubic Meter |
| 1 Mile = 1.6 Kilometers | |

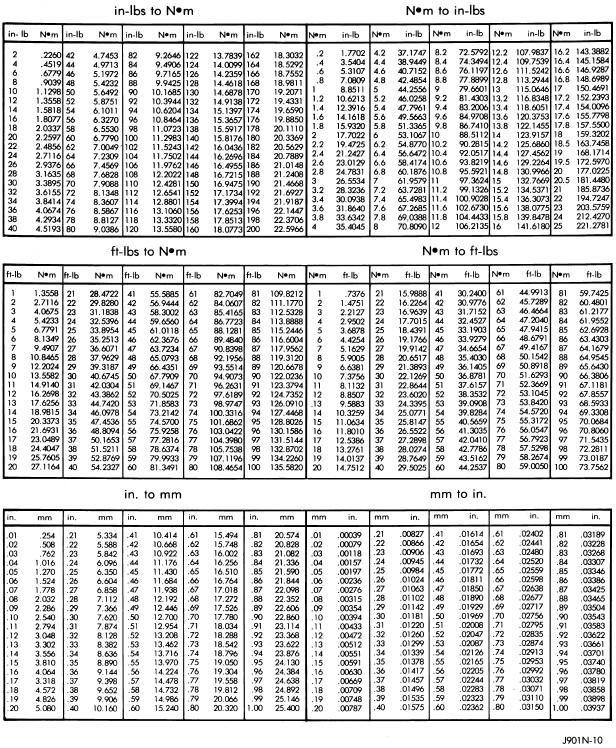

Refer to the Metric Conversion Chart (see Fig 1) to convert torque values listed in metric Newton Meters (N.m). Also, use the chart to convert between millimeters (mm) and inches (in.).
