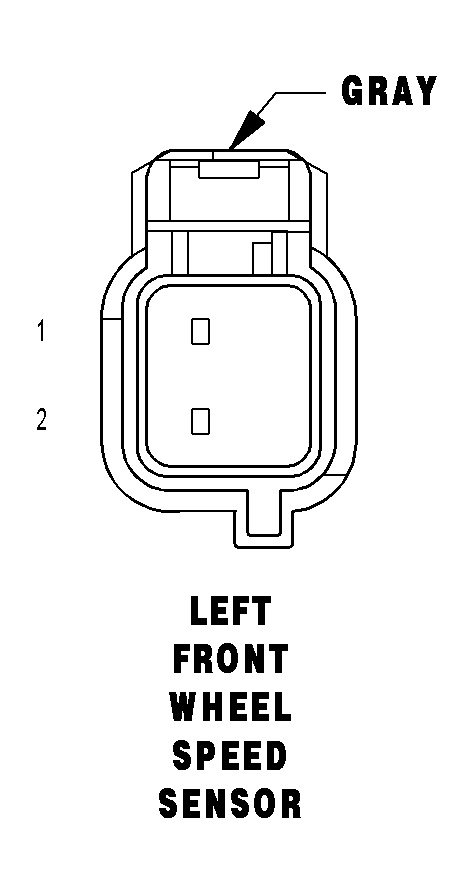

Left Front Wheel Speed Sensor Connector End View
LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B9 18DG/WT (3.3L/3.8L) |
LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 1 |
B9 18DG/LG (EXCEPT 3.3L/3.8L) |
LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B8 18DG/TN |
LEFT FRONT WHEEL SPEED SENSOR SIGNAL |
