Steering System: Gear: Gear: Assembly

Lubricate replacement mounting bolt isolator bushing using Mopar, Silicone Spray Lube or an equivalent.

Install the mounting bolt isolator bushing into the steering gear mounting bracket from the bottom side of the bracket. See Fig 1.

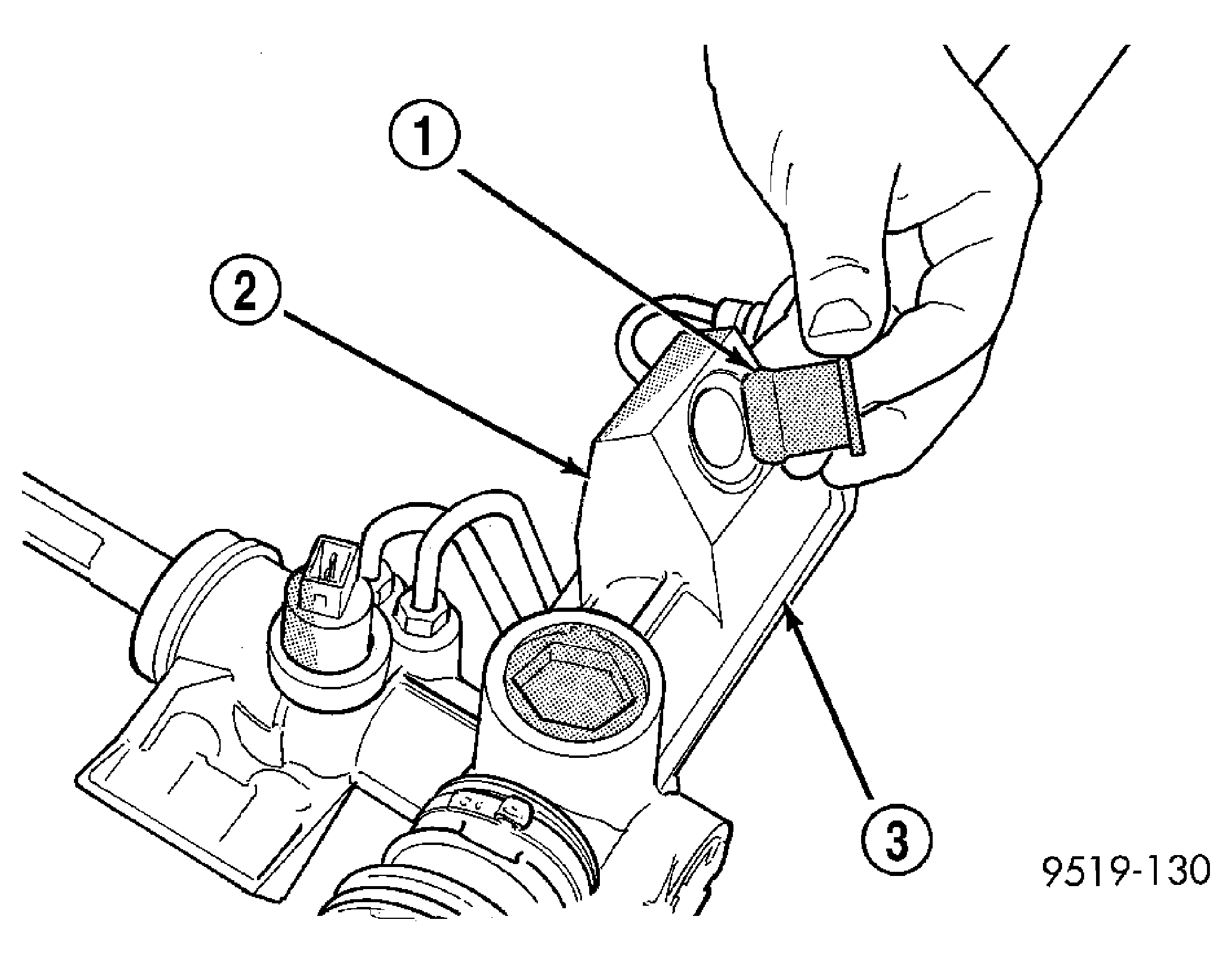

Fig 1: Installing Mounting Bolt

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEERING GEAR MOUNTING BOLT ISOLATOR BUSHING

2 - STEERING GEAR MOUNTING BRACKET

3 - STEERING GEAR

Install mounting bolt isolator bushing sleeve into isolator bushing by pressing the sleeve into the bushing by hand. See Fig 2.

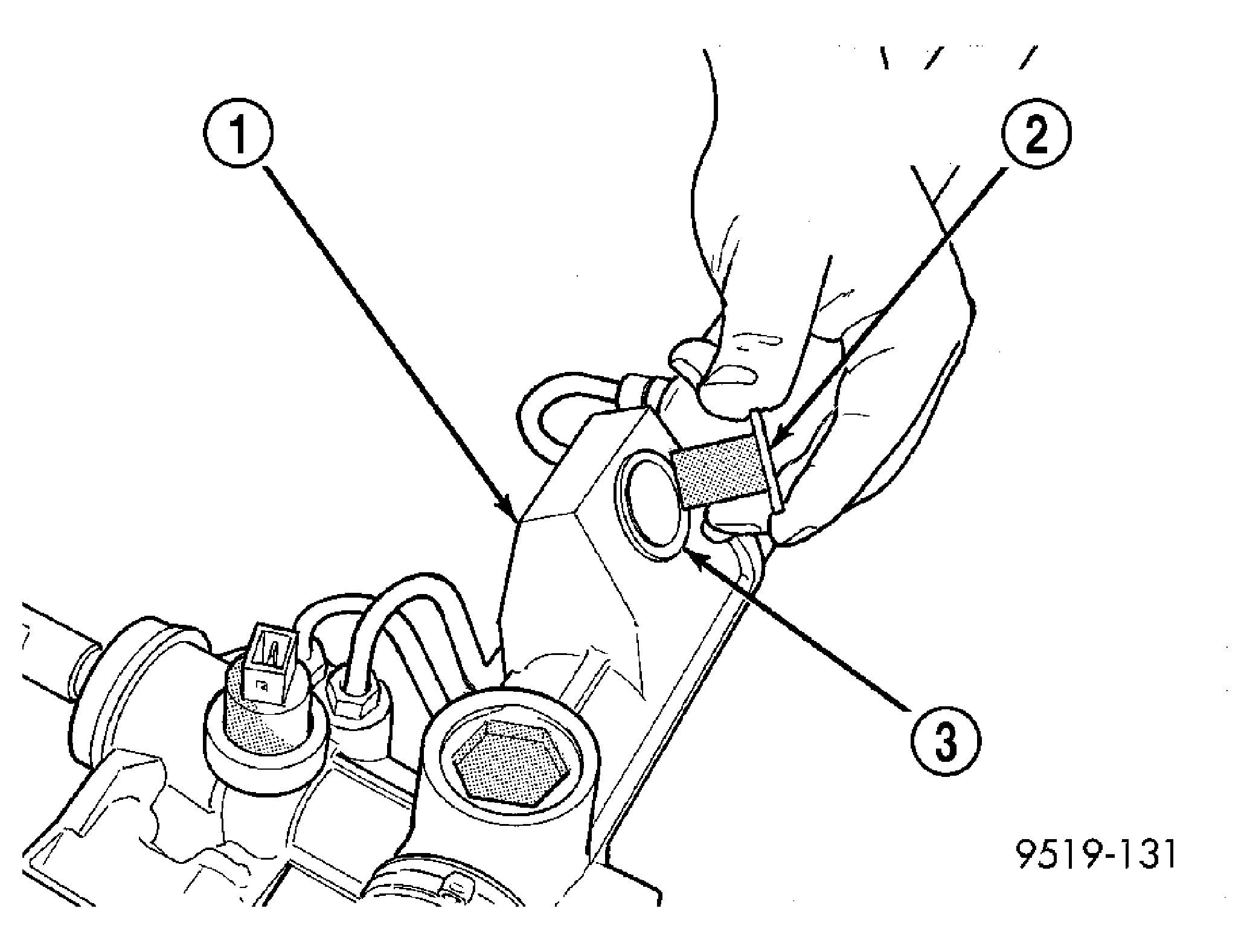

Fig 2: Mounting Bolt Isolator Sleeve Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEERING GEAR MOUNTING BRACKET

2 - ISOLATOR BUSHING SLEEVE

3 - STEERING GEAR MOUNTING BOLT ISOLATOR BUSHING
