Steering System: Gear: Gear: Disassembly

  1. Using a screwdriver, pry the sleeve out of the mounting bolt isolator. See Fig 1.

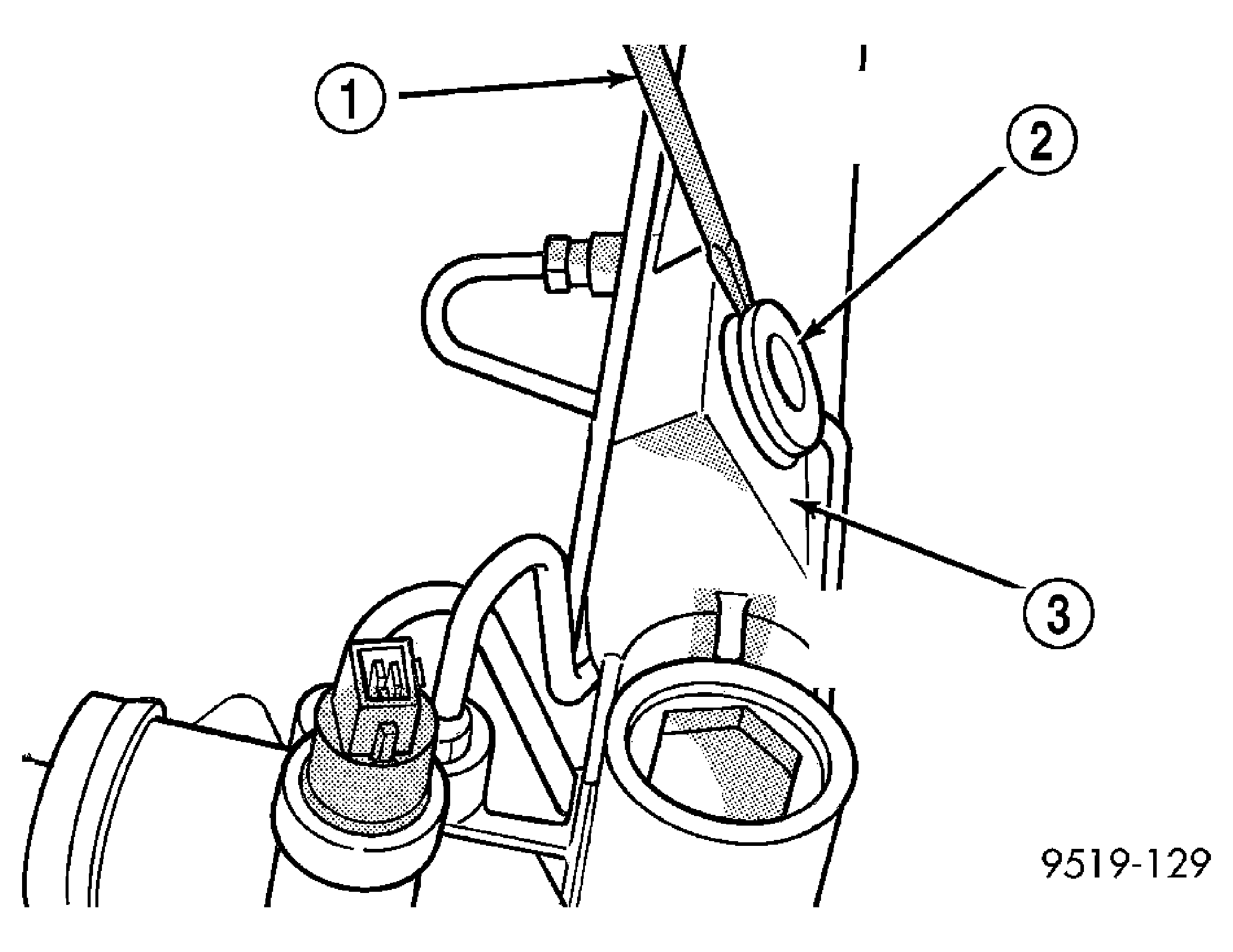

    Fig 1: Mounting Bolt Isolator Sleeve Removal
    GC0031083Courtesy of DAIMLERCHRYSLER CORP.
    1 - SCREWDRIVER
    2 - ISOLATOR BUSHING SLEEVE
    3 - STEERING GEAR MOUNTING BRACKET
  2. Pry the mounting bolt isolator bushing from the steering gear mounting bracket.
