Jr 2.0L/2.Schematic

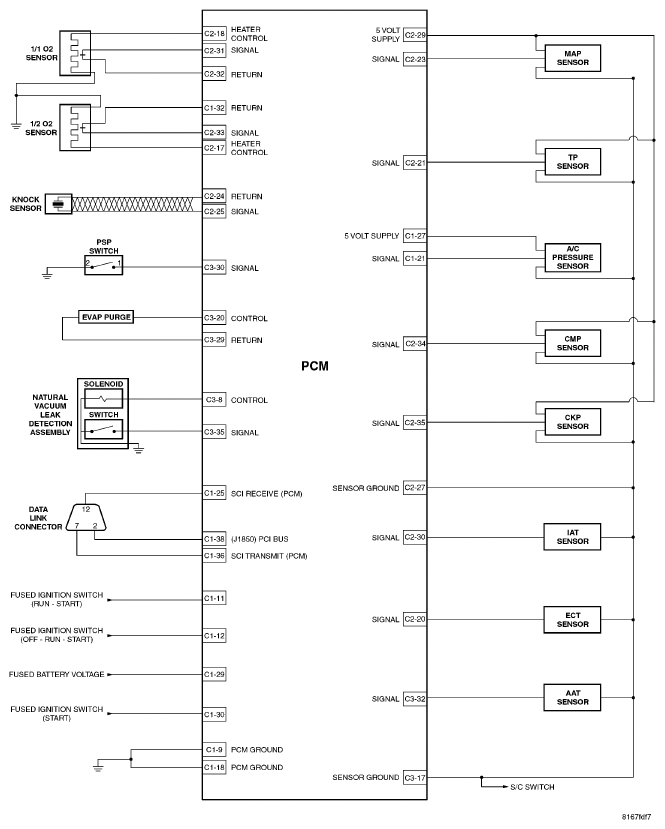

Fig 1: Schematic Diagrams - 2.0L/2 (1 Of 2)

G04762605

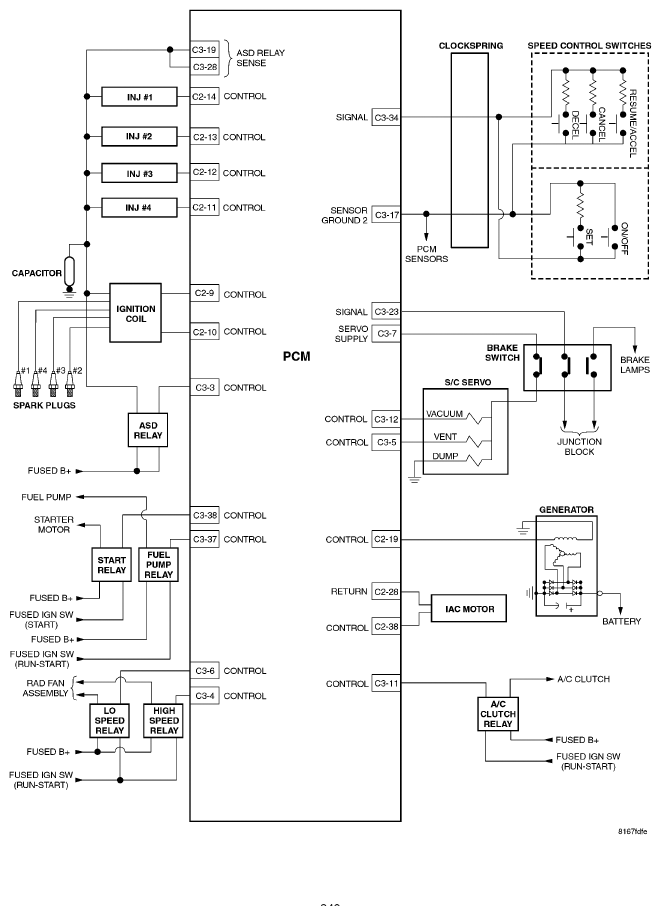

Fig 2: Schematic Diagrams - 2.0L/2 (2 Of 2)

G04762606
