Installation - 4 Cylinder

  1. Install the crankshaft sensor.
  2. Install crankshaft sensor bolt and tighten.
  3. Connect the electrical connector. See Figure.
  4. Install starter and tighten bolts, (Refer to ELECTRICAL/STARTING/STARTER MOTOR - INSTALLATION) .
  5. Install the air cleaner box. See Fig 1, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .

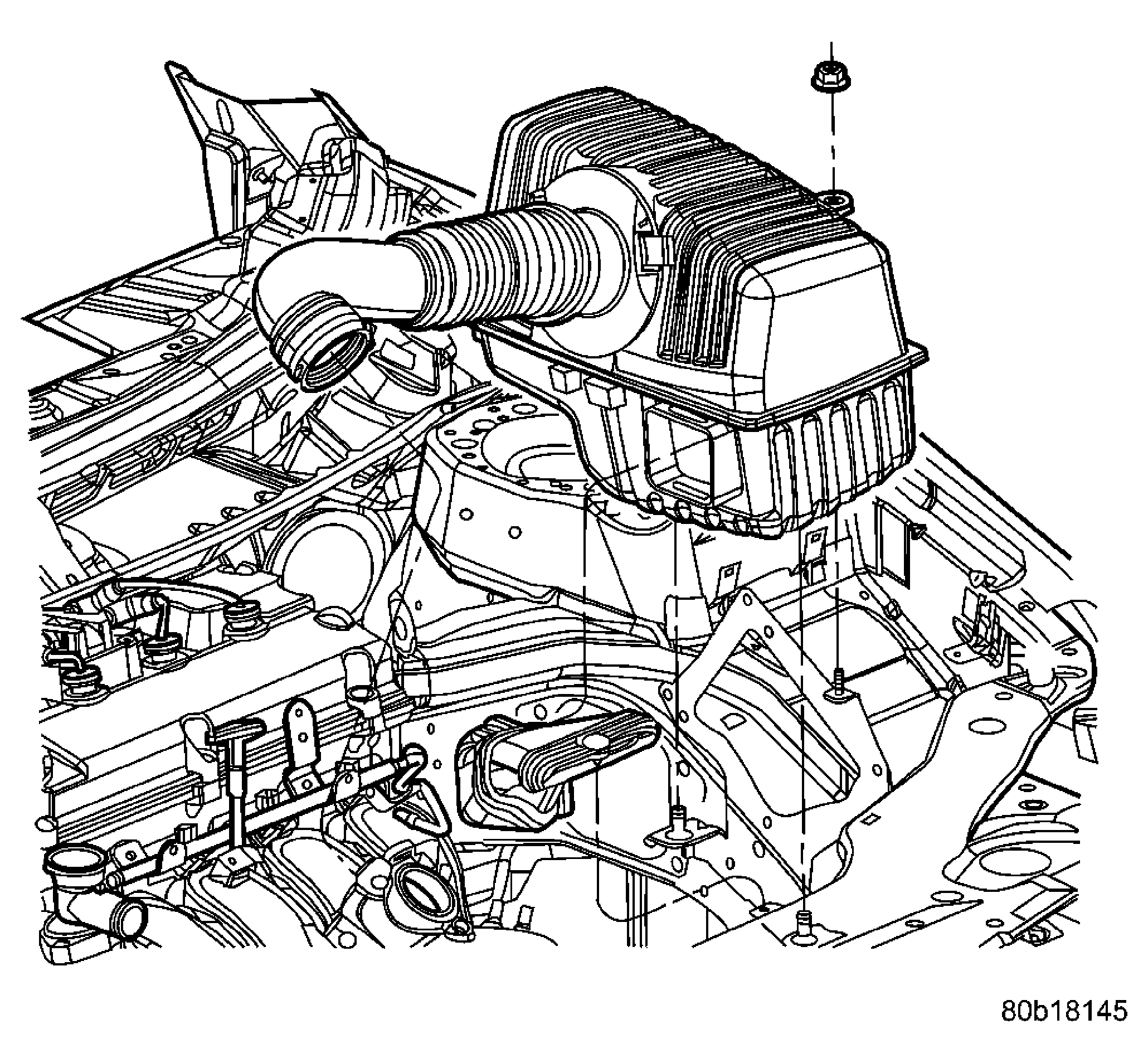

    Fig 1: Air Cleaner Housing
    GC0032010Courtesy of DAIMLERCHRYSLER CORP.
  6. Connect the negative battery cable.
