Windshield Header Damper: Removal

  1. Remove center header trim panel (Refer to BODY/INTERIOR/INTERIOR TRIM PANELS - REMOVAL) .
  2. Remove nuts attaching damper. See Fig 1.
  3. Remove damper from vehicle.

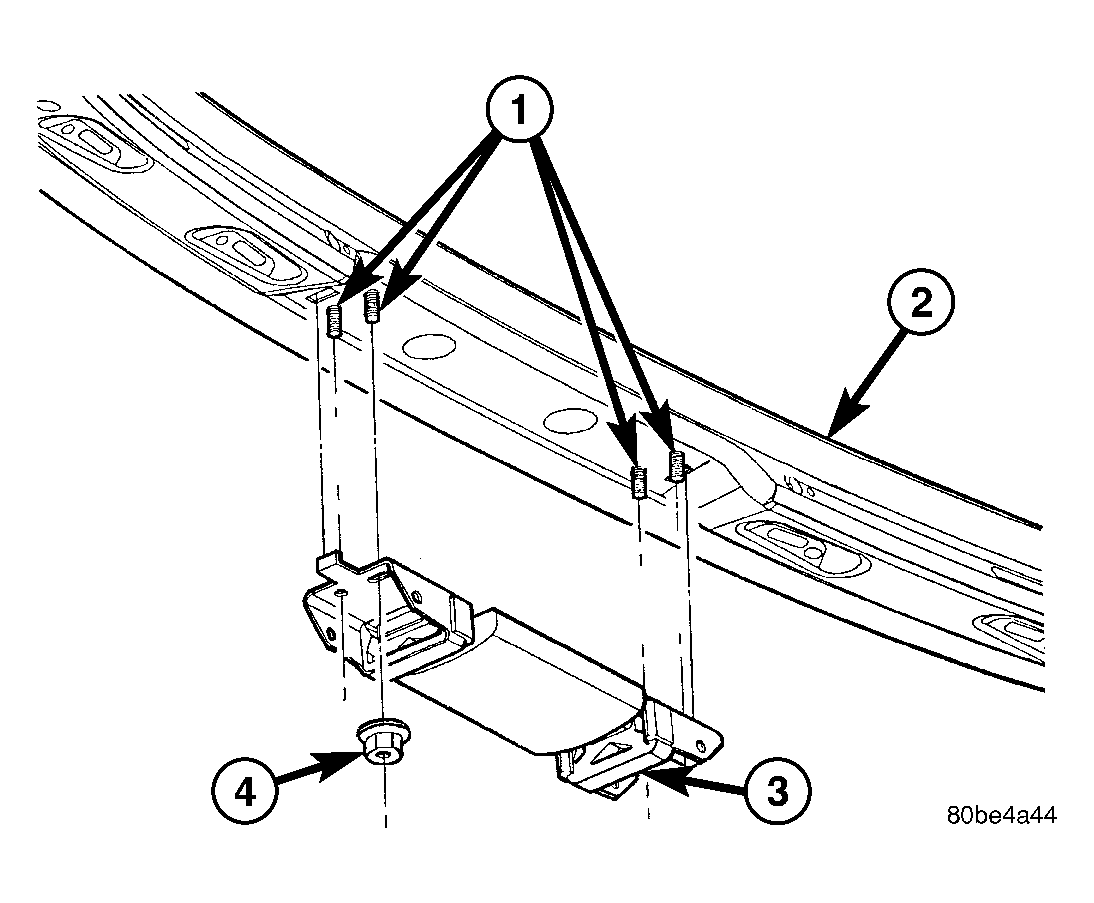

Fig 1: Windshield Header Damper
GC0031482Courtesy of DAIMLERCHRYSLER CORP.
1 - STUDS
2 - HEADER PANEL
3 - WINDSHIELD HEADER DAMPER
4 - NUT(S)
