Interior & Exterior: Hood: Latch: Installation

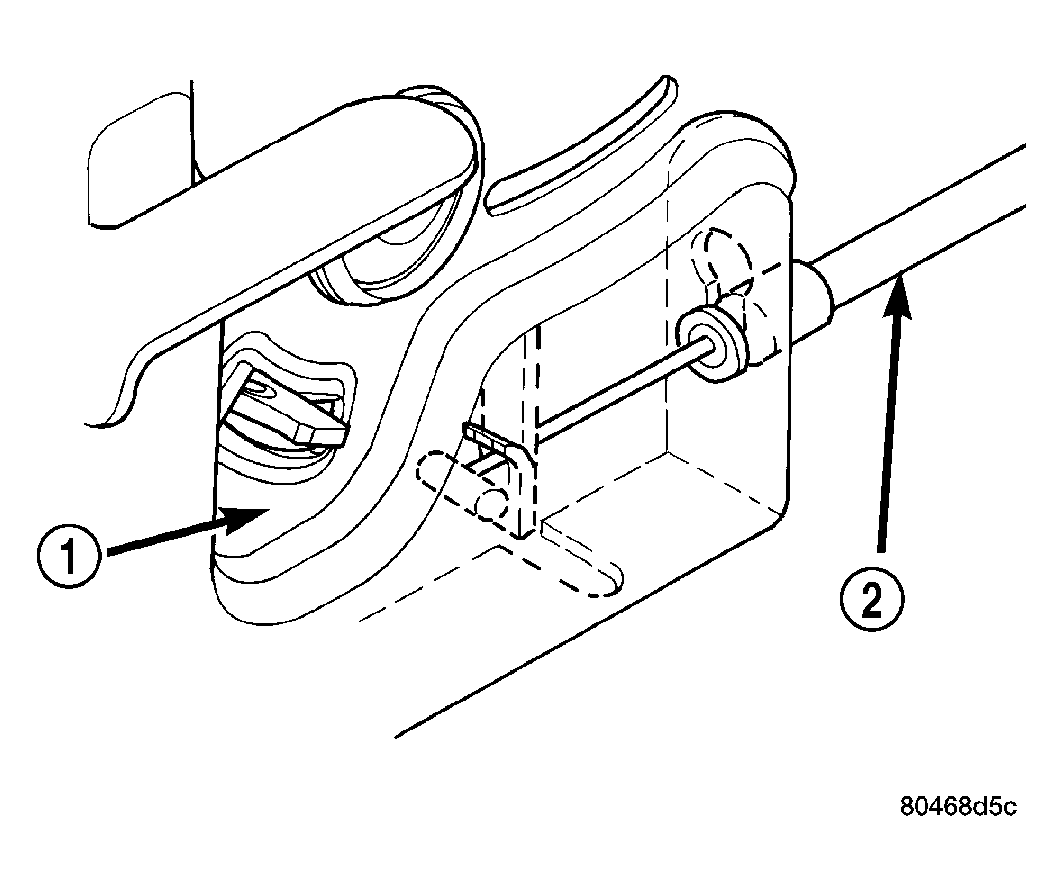

  1. Engage remote release cable into hood latch. See Figure.
  2. Position hood latch on vehicle.
  3. Install nuts attaching hood latch onto upper radiator support crossmember.
  4. Tighten nut to 28 N.m (20 ft. lbs.) torque.
  5. Verify operation. Adjust as necessary.
