Engine & Automatic Transmission Cooling System: Cooling: Operation
The primary purpose of a cooling system is to maintain engine temperature in a range that will provide satisfactory engine performance and emission levels under all expected driving conditions. It also provides hot water (coolant) for heater performance. See Fig 1 or Fig 2.

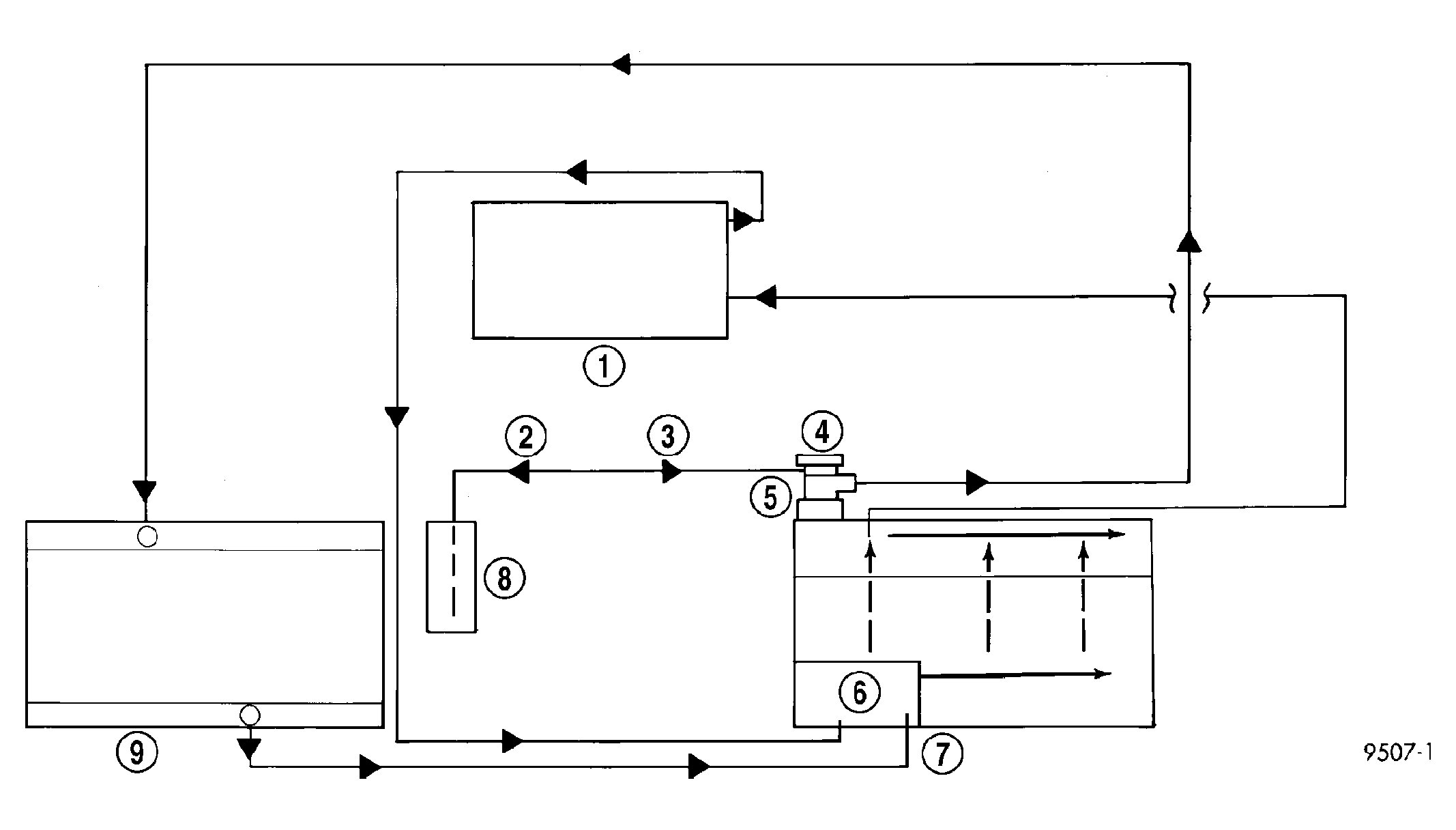

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - HEATER |
| 2 - HEAT UP |
| 3 - COOL DOWN |
| 4 - PRESSURE CAP |
| 5 - COOLANT OUTLET CONNECTOR |
| 6 - WATER PUMP |
| 7 - ENGINE |
| 8 - COOLANT RECOVERY CONTAINER |
| 9 - RADIATOR |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - HEATER CORE |
| 2 - COOLANT PRESSURE CONTAINER |
| 3 - COOLANT OUTLET CONNECTOR |
| 4 - ENGINE |
| 5 - WATER PUMP |
| 6 - THERMOSTAT |
| 7 - RADIATOR |
