Automatic Transmission Diagnostic Procedures
>>
Connector PINOUTS
>>
Transmission Control Relay
Transmission Control Relay

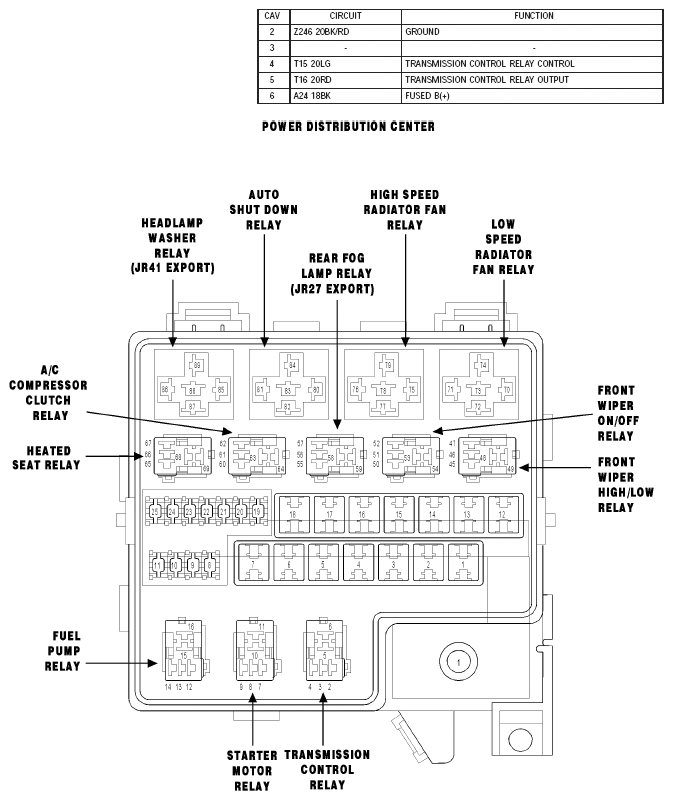

Fig 1: Identifying Power Distribution Center - Transmission Control Relay
Courtesy of CHRYSLER
Courtesy of CHRYSLER
