Powertrain Control Module C4 - Black/Green 38 Way

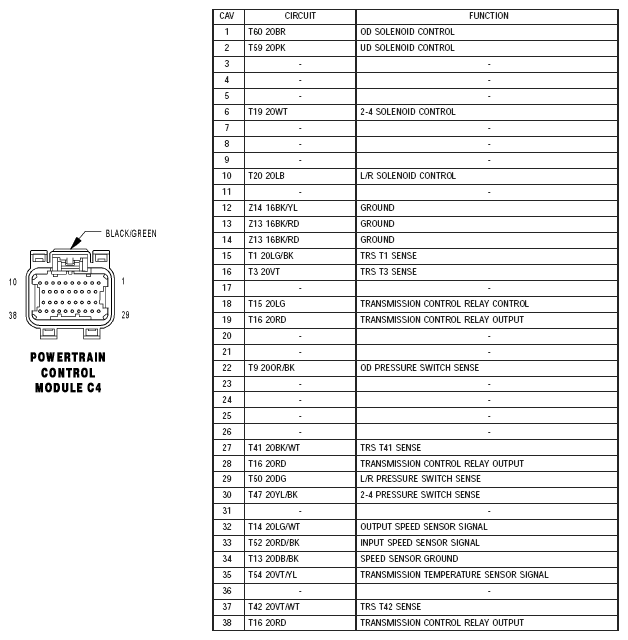

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C4
G04762850Courtesy of CHRYSLER
