Steering System: Pump: Reservoir: Installation

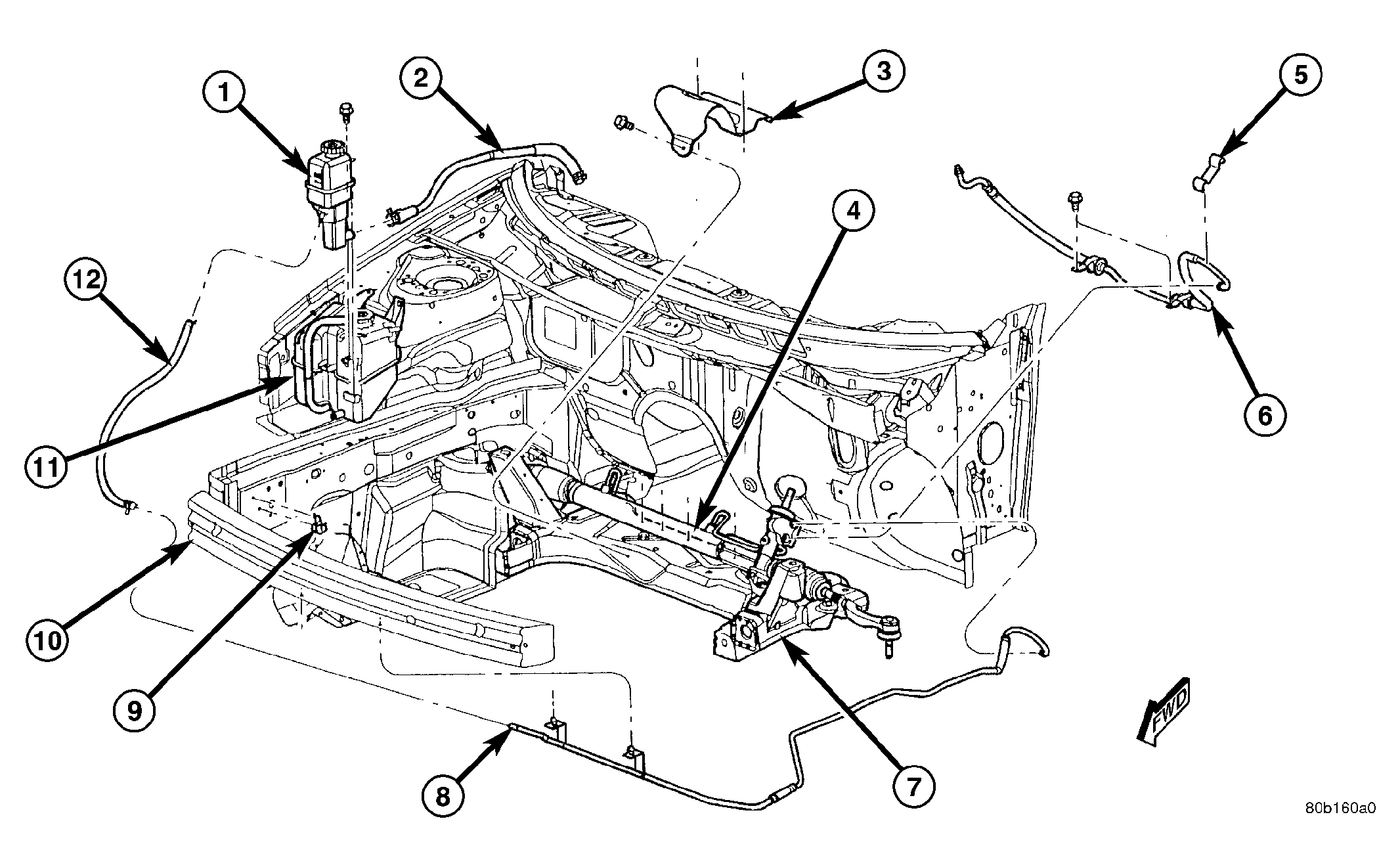

  1. Install power steering fluid return and supply hoses on power steering fluid reservoir fittings. See Figure. Be sure both hose clamps are installed on hose past upset bead on power steering reservoir fittings.
  2. Slide reservoir down over guide on engine coolant recovery bottle.
  3. Install power steering fluid reservoir mounting screw and tighten to 6 N.m (53 in. lbs.).
  4. Install remote battery ground cable on ground stud located on left shock tower.
  5. Fill power steering pump fluid reservoir to the proper level.
  6. Start the engine and let run for a few seconds, then turn the engine off.
  7. Adjust fluid level if necessary. Repeat steps (5) and (6) until the fluid level remains constant after running the engine. If necessary perform Power Steering Pump Initial Operation standard procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE)
  8. Check for leaks.
