Travel Sensor: Installation
WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.
- Insert a new O-ring into the groove in the brake booster and ensure that it is correctly seated.
- Rub some soapy water onto the front of the diaphragm travel sensor so that the O-ring does not bind when inserted.

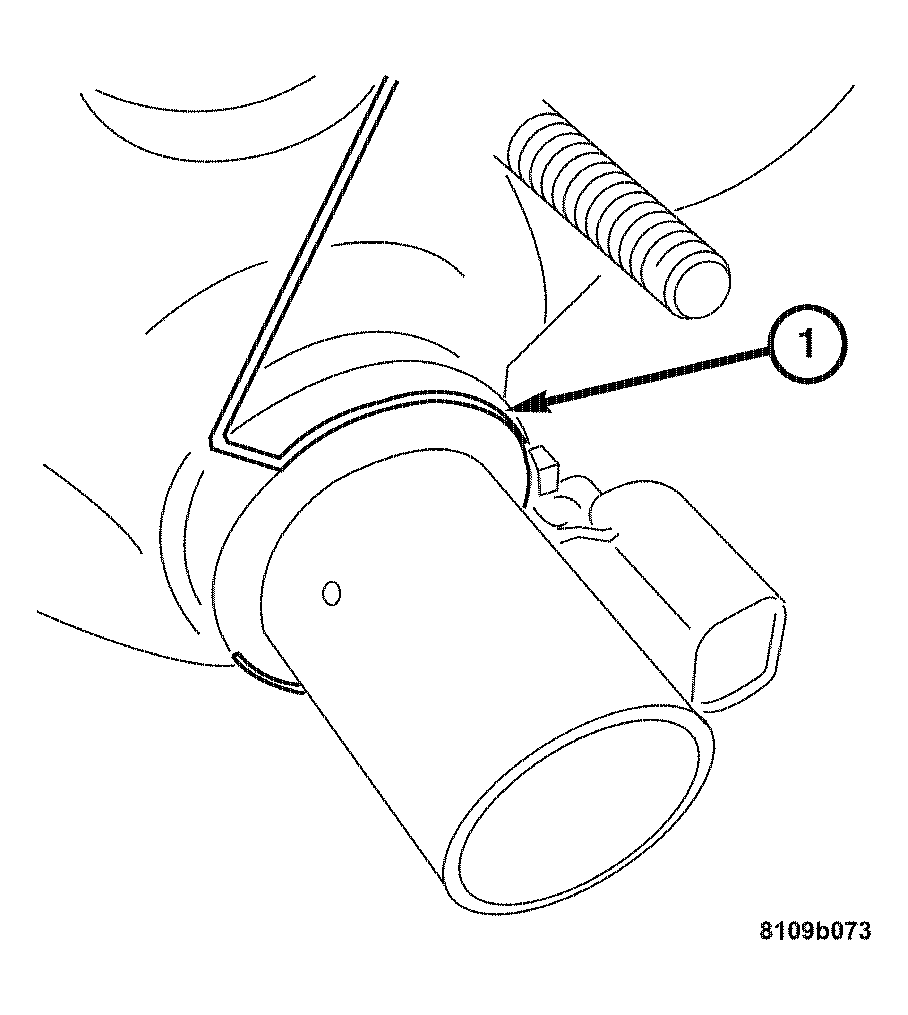

- Replace locking ring (1) and ensure that it is correctly seated.
- Connect the electrical harness connector to the travel sensor.
