Section 83 (Mechanical Brake System - Base (Service Information)): Lever: Installation

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

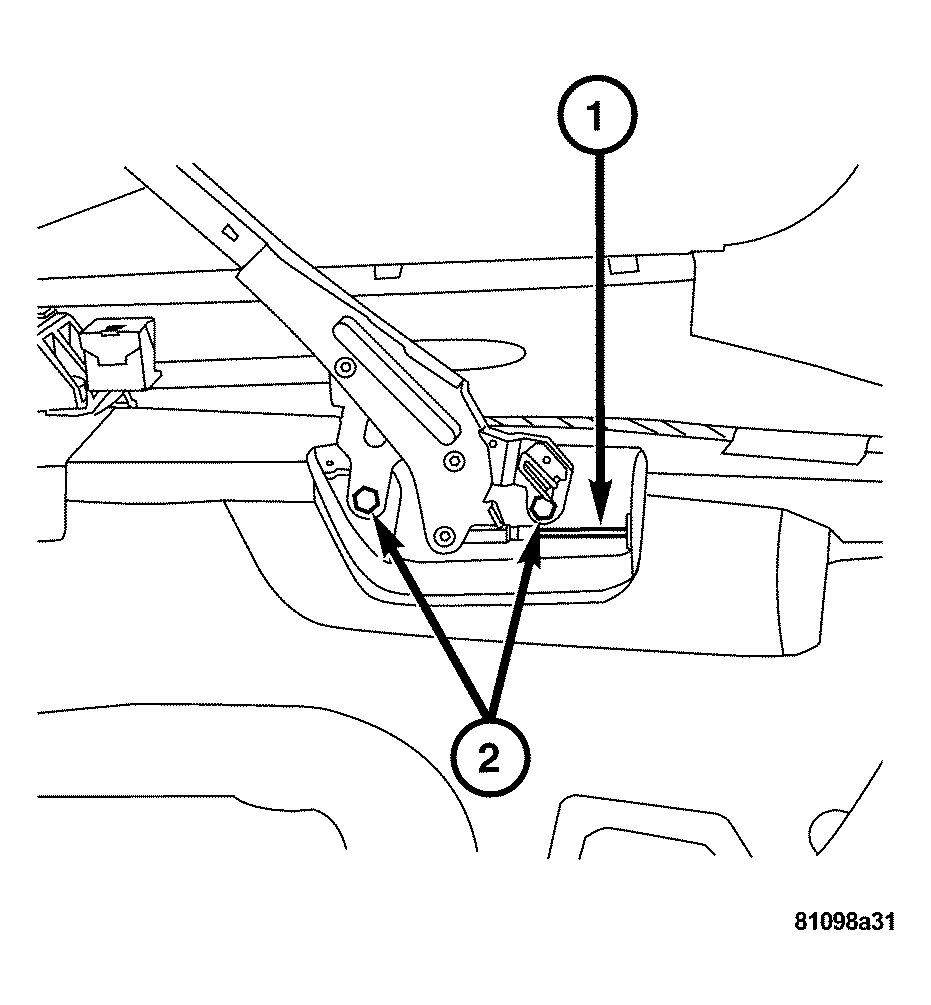

Fig 1: Identifying Parking Brake Lever Assembly & Mounting Bolts

Courtesy of DAIMLERCHRYSLER CORP.

Install the front parking brake cable (1) through the hole in the floor. Then install the parking brake lever and bolts (2). Tighten to 20 N.m (15 ft. lbs.).
Connect the parking brake switch harness connector.

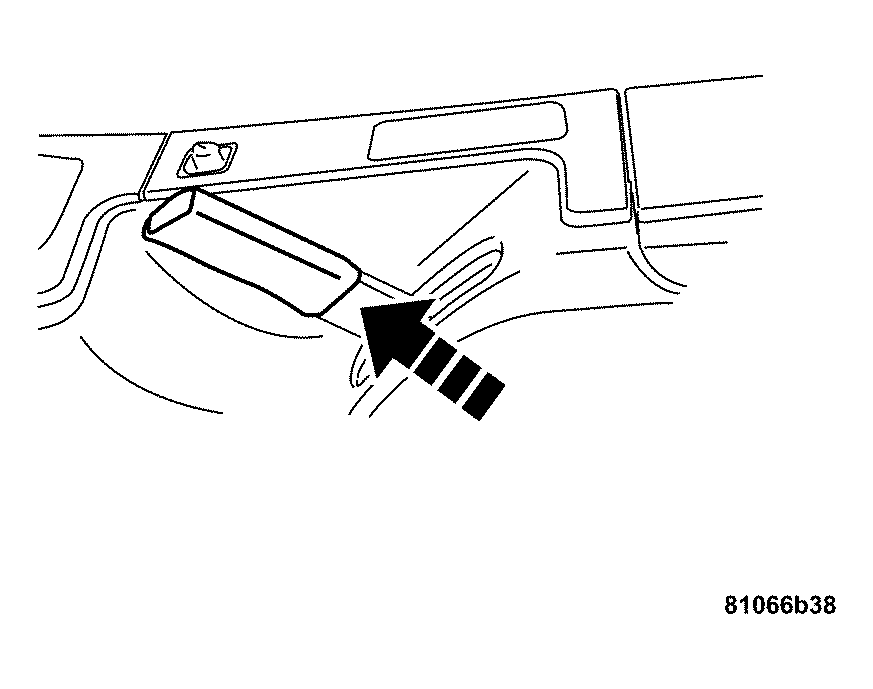

Fig 2: Removing/Installing Parking Brake Lever Handle
Courtesy of DAIMLERCHRYSLER CORP.
Install the center console (2). (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
Install the rubber handle (1) onto the parking brake lever.

Fig 3: Identifying Shift Lever Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the shifter bezel (1). (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .

Fig 4: Identifying Parking Brake Cable System Components
Courtesy of DAIMLERCHRYSLER CORP.
Install the parking brake cable equalizer (1) to the front parking brake cable mounting bolts (5).

Fig 5: Identifying Parking Brake Cable System Components
Courtesy of DAIMLERCHRYSLER CORP.
Tighten the parking brake equalizer tensioning bolt (3).
Attach the return spring (4) from the equalizer (1) to the body frame.
Adjust the parking brake. (Refer to BRAKES/PARKING BRAKE - ADJUSTMENTS) .
