Brake Fluid Level Sensor: Installation

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

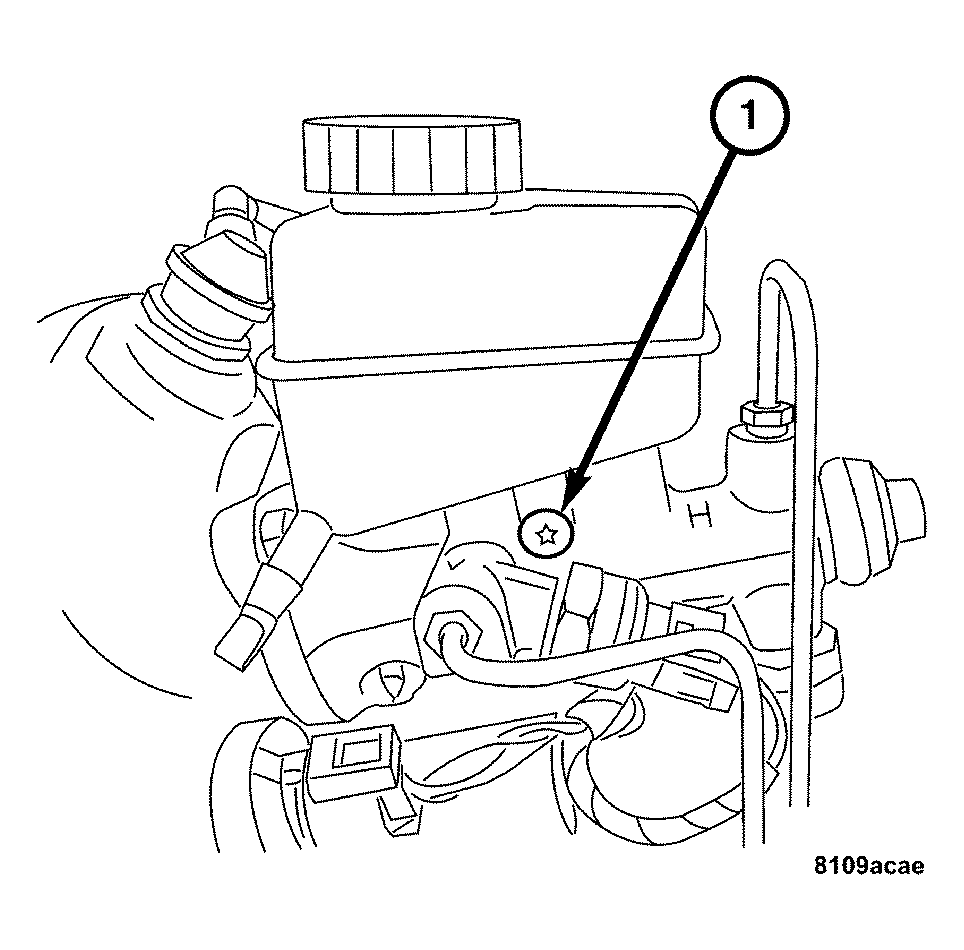

Fig 1: Identifying Brake Fluid Level Sensor
GC0033799Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the fluid reservoir to the master cylinder.
  2. Install the screw (1) attaching the fluid reservoir to the master cylinder.
  3. Connect the brake fluid level sensor harness connector.
  4. Fill the reservoir with MOPAR® brake fluid to the proper level.
  5. Bleed the braking system. (Refer to BRAKES/HYDRAULIC/MECHANICAL/MASTER CYLINDER - STANDARD PROCEDURE) . and (Refer to BRAKES - STANDARD PROCEDURE) .
