Installation - 4 Cylinder

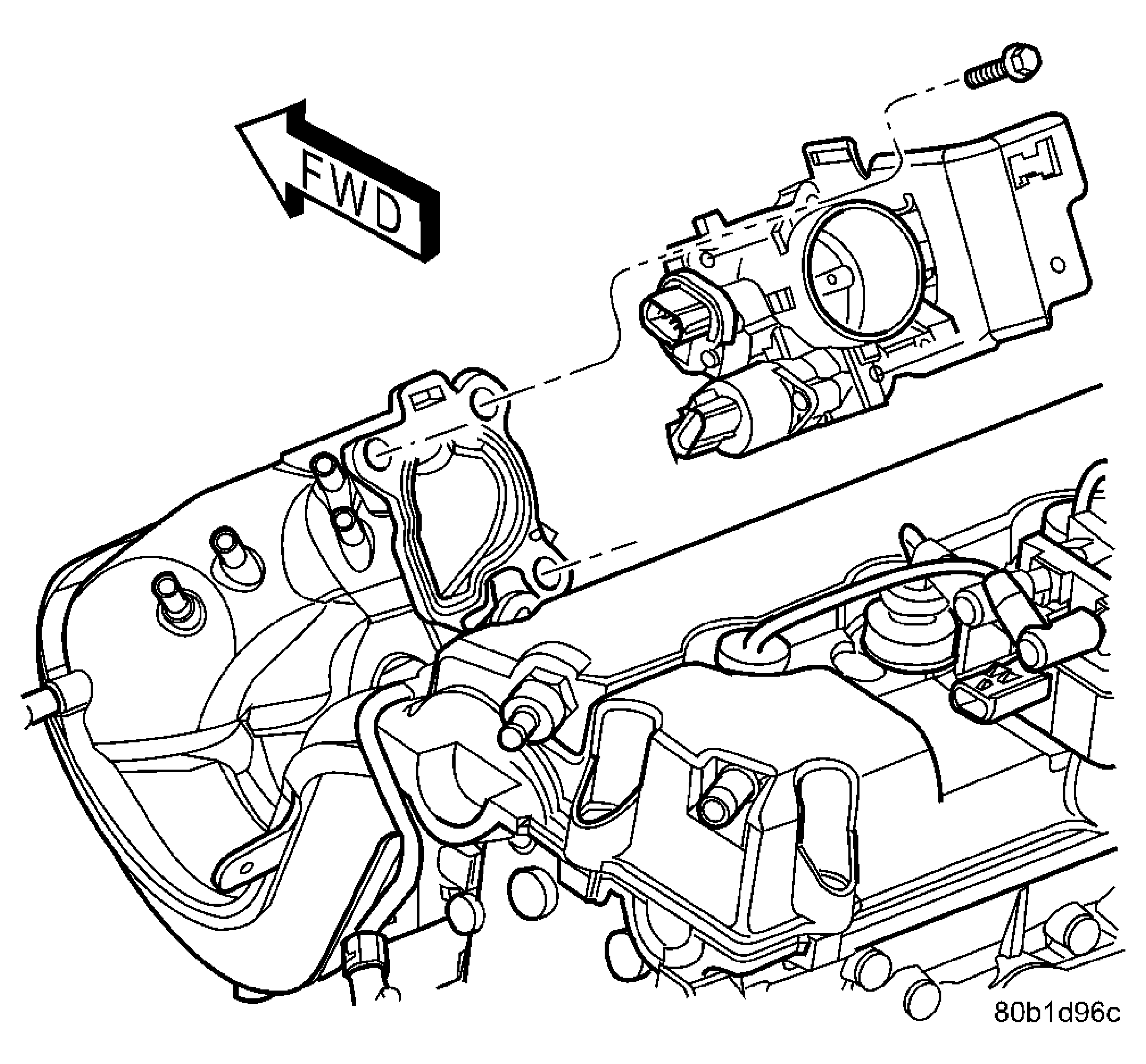

  1. Install throttle body. See Figure.
  2. Tighten throttle body mounting bolts to 13.6 N.m (120 in. lbs.) torque.

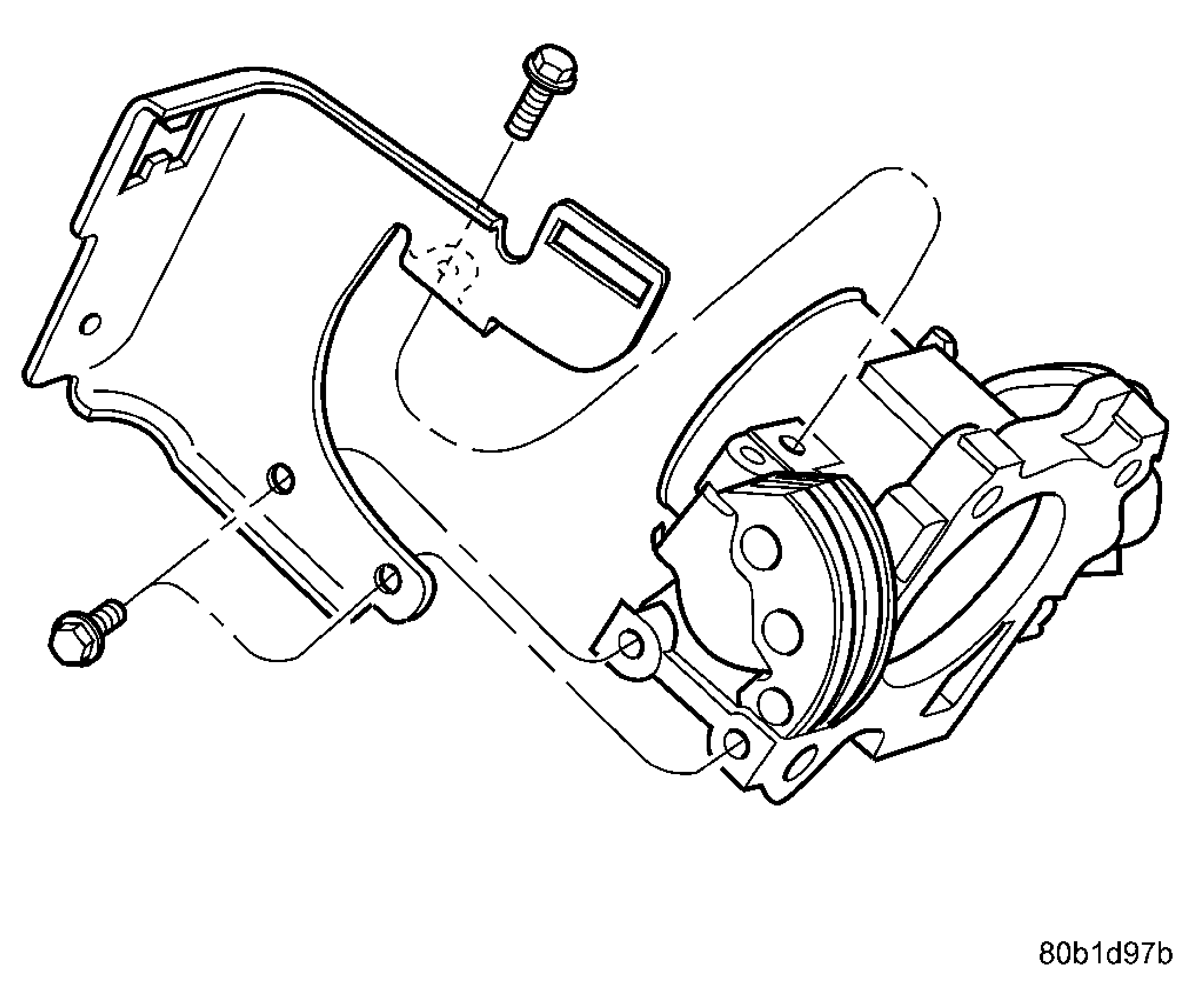

  3. Install the throttle cable bracket. See Figure. Tighten throttle cable bracket mounting bolts to 14.1 N.m (125 in. lbs.) torque
  4. Hold throttle lever in the wide open throttle position and install the throttle and speed control cables (if equipped).
  5. Connect electrical connectors to the idle air control motor and throttle position sensor (TPS).
  6. Install the throttle cable shield.
  7. Install clean air hose to throttle body. See Figure.
  8. Connect negative cable to battery cable.
