Battery Heater Blanket: Removal

  1. Remove the battery and the battery heater blanket from the battery tray as a unit. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .

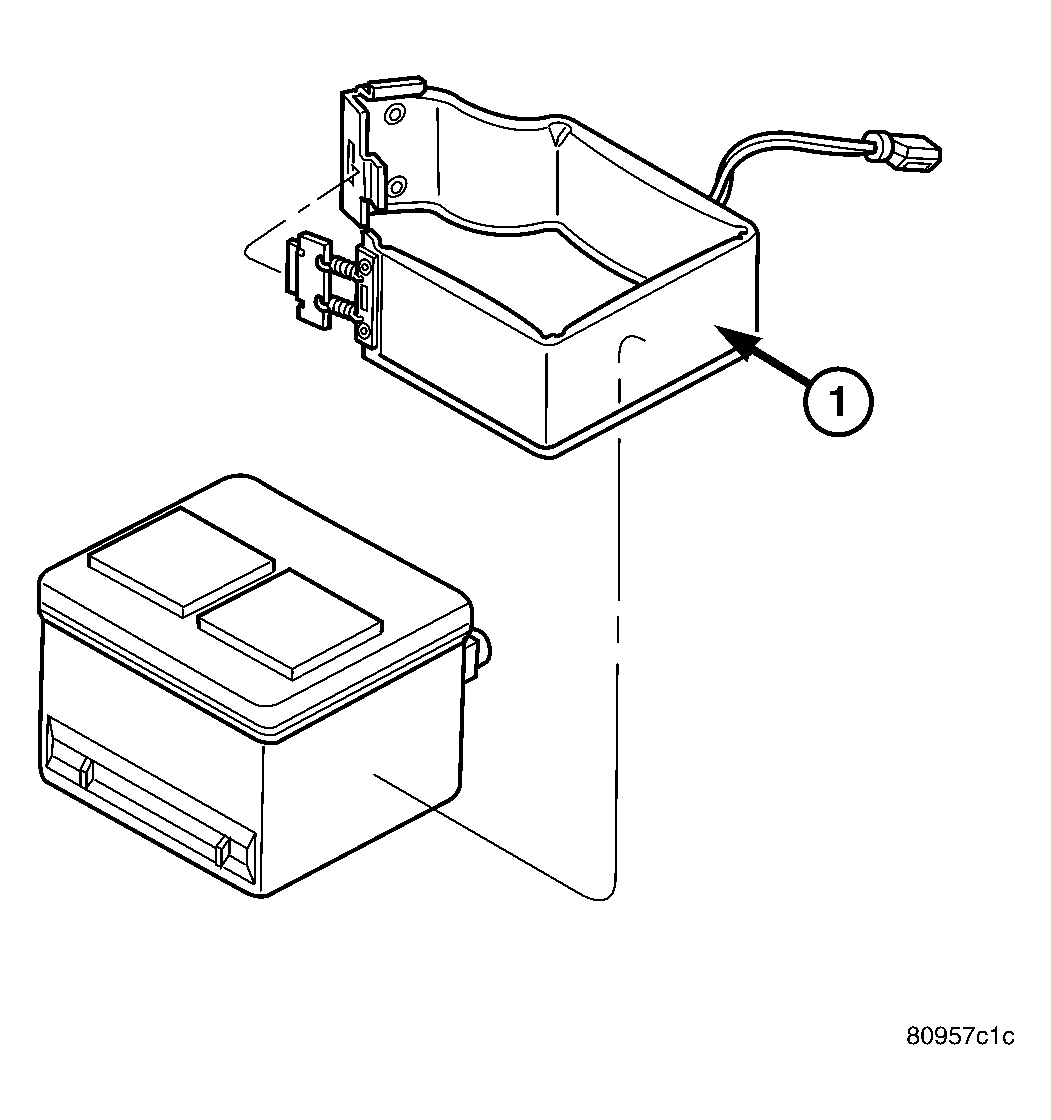

    Fig 1: Battery Heater Blanket
    GC0031209Courtesy of DAIMLERCHRYSLER CORP.
    1 - BATTERY HEATER BLANKET
  2. Carefully slide the heater blanket straight off the battery case. See Fig 1.
