ICU (Integrated Control Unit): Removal

Remove the remote ground cable from the ground stud on the left strut tower.
Correctly isolate remote ground cable when servicing vehicle by installing the ground cable insulator on the strut tower ground stud. This will prevent accidental grounding of the remote ground cable.

Using a brake pedal positioning tool, depress brake pedal past its first one inch of travel and hold in this position. This will isolate the master cylinder reservoir from the brake hydraulic system, not allowing the brake fluid to drain out of the reservoir. See Fig 1.

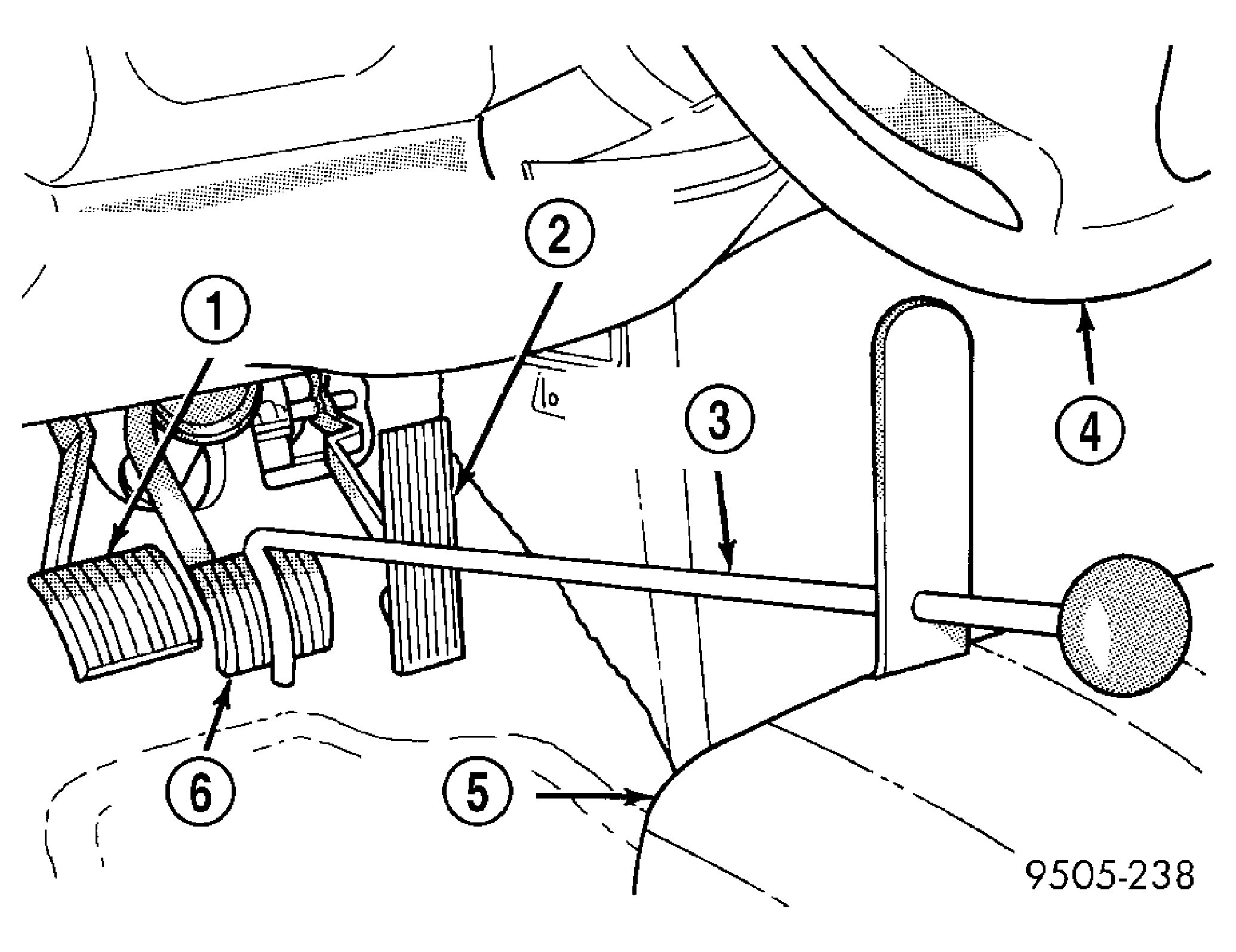

Fig 1: Brake Pedal Holder

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLUTCH PEDAL (IF EQUIPPED WITH MANUAL TRANSAXLE)

2 - THROTTLE PEDAL

3 - BRAKE PEDAL HOLDING TOOL

4 - STEERING WHEEL

5 - DRIVER'S SEAT

6 - BRAKE PEDAL

Remove the air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) for 2.4L engine and (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) for 2.7L engine.
Clean any debris away from the fittings on top of the ICU.

Remove the two brake tubes coming from the primary and secondary master cylinder ports at the ICU. See Fig 2.

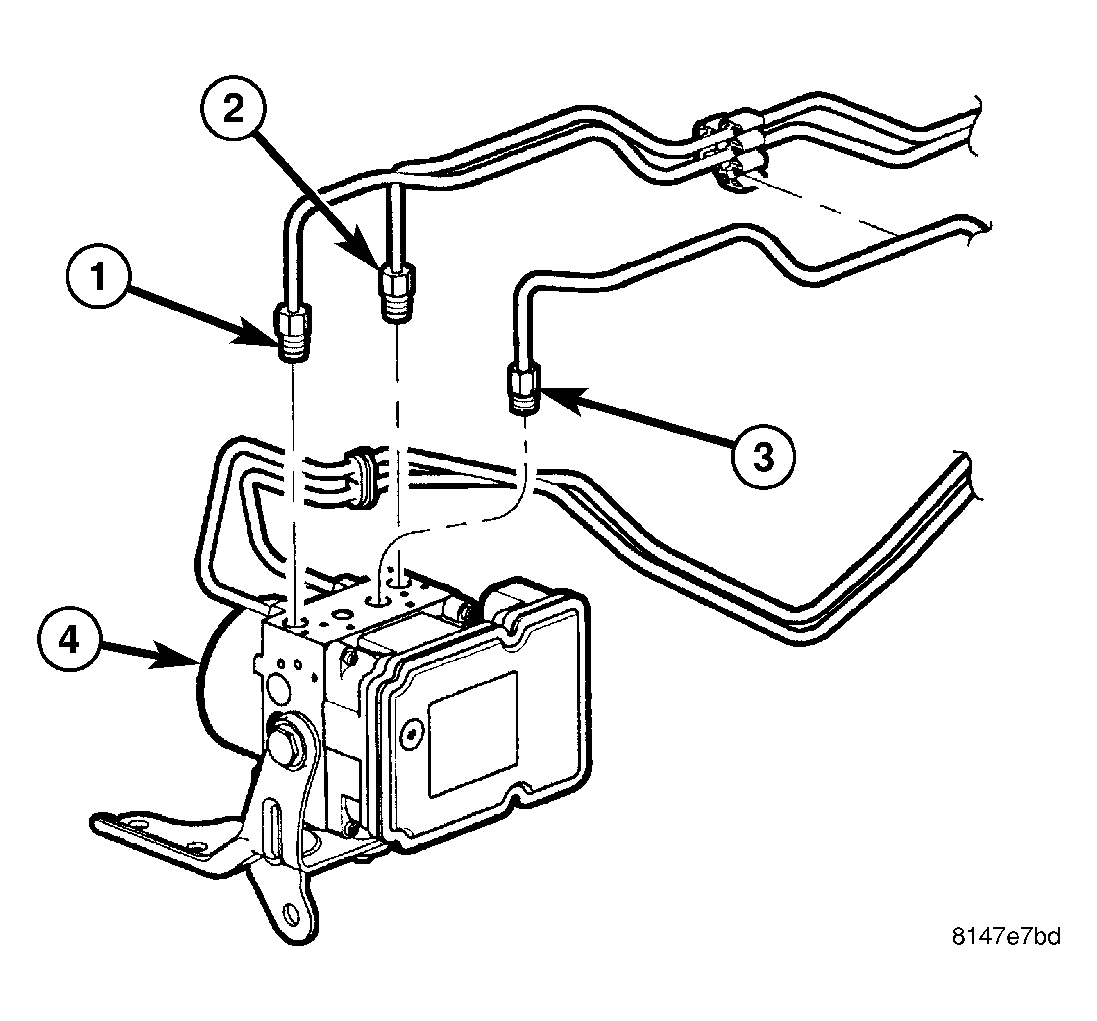

Fig 2: Primary, Secondary And Left Front Brake Tubes

Courtesy of DAIMLERCHRYSLER CORP.

1 - PRIMARY BRAKE TUBE

2 - SECONDARY BRAKE TUBE

3 - LEFT FRONT CHASSIS BRAKE TUBE

4 - ICU

Remove the left front chassis brake tube at the ICU. See Fig 2.

Remove the right front chassis brake tube at the ICU. See Fig 3.

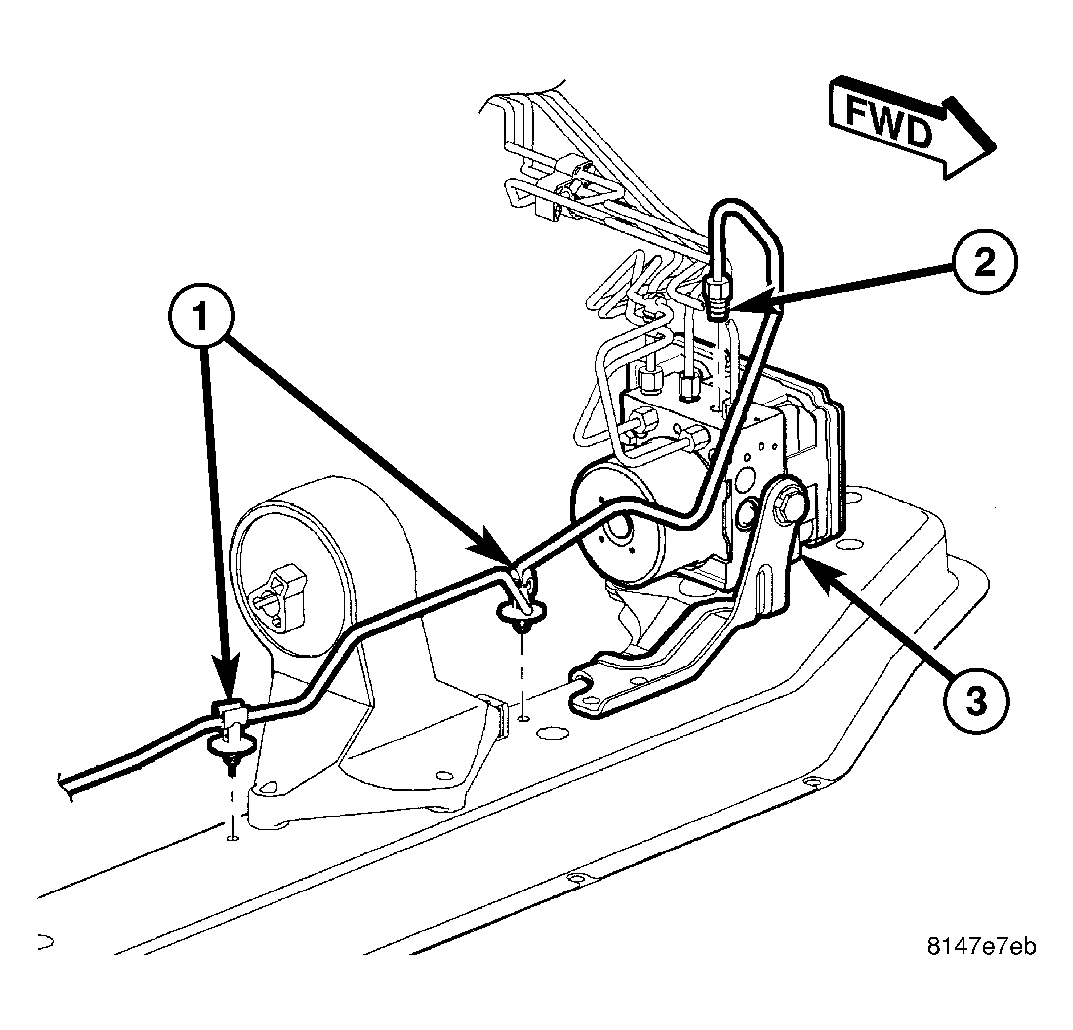

Fig 3: Right Front Chassis Brake Tube At ICU

Courtesy of DAIMLERCHRYSLER CORP.

1 - ROUTING CLIPS

2 - RIGHT FRONT CHASSIS BRAKE TUBE

3 - ICU

Remove the rear chassis brake tubes at the ICU. See Fig 4.

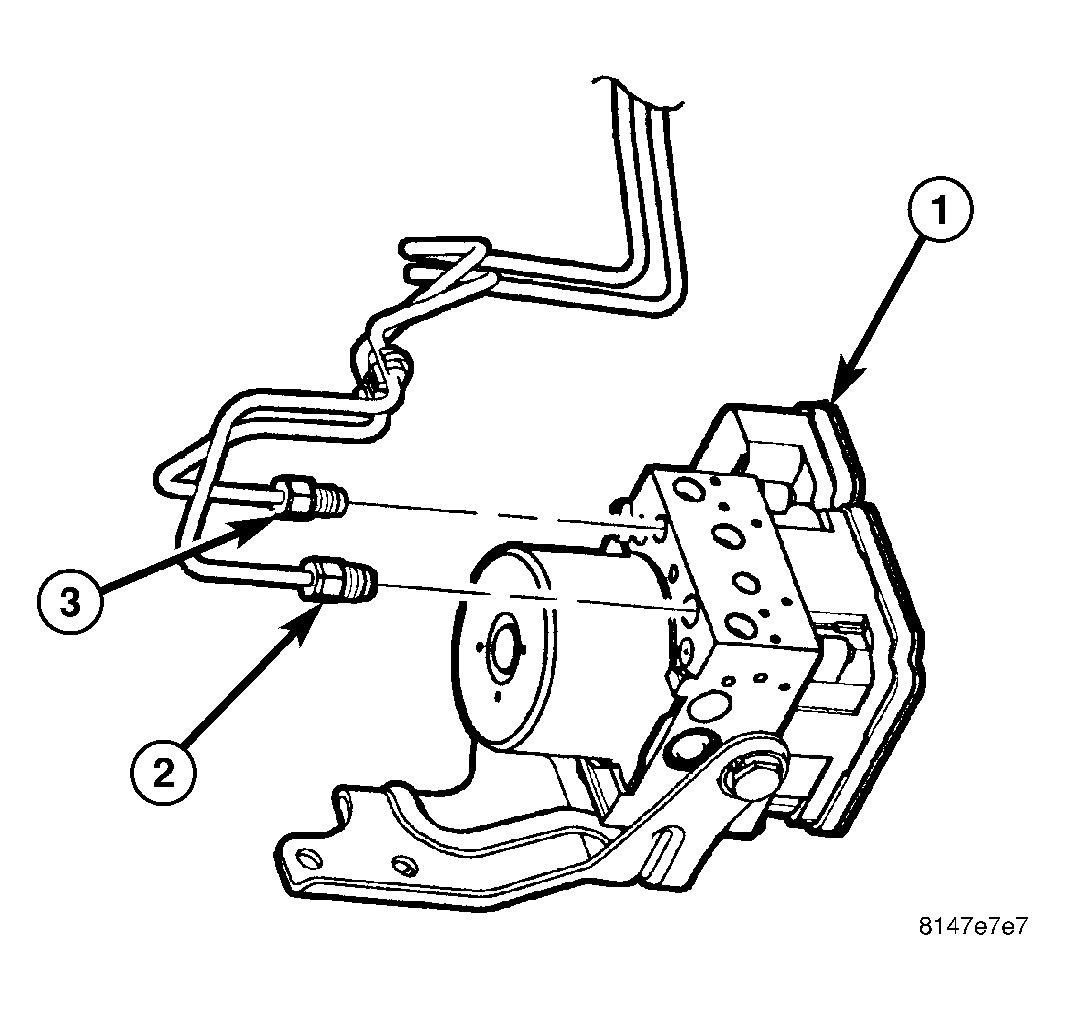

Fig 4: Rear Chassis Brake Tubes At ICU

Courtesy of DAIMLERCHRYSLER CORP.

1 - ICU

2 - LEFT FRONT CHASSIS BRAKE TUBE

3 - RIGHT FRONT CHASSIS BRAKE TUBE

Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
Disconnect the 47-way connector from the antilock brake module (ABM) by depressing the tabs on each side of the connector cover, then pulling outward and upward on the lower half of the cover until it locks into position pointing straight outward. The connector can then be pulled straight outward off the ABM. See Fig 5 and Fig 6.

Fig 5: ABM Connector Release Tabs
Courtesy of DAIMLERCHRYSLER CORP.

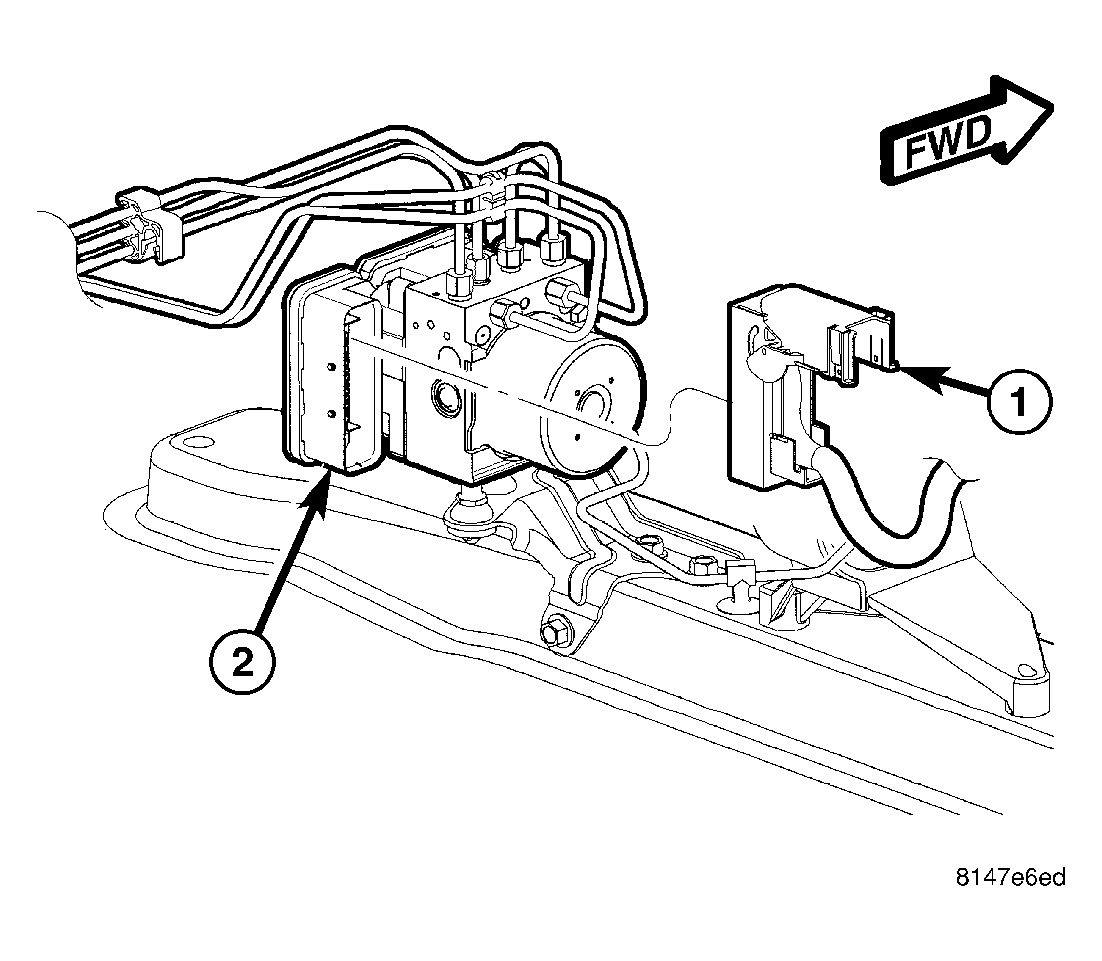

Fig 6: Wiring Connector At ABM
Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRING CONNECTOR

2 - ABM (ON ICU)
Remove the three screws fastening the ICU to the lower radiator support. See Fig 7.

Remove the ICU from the vehicle. See Fig 7.

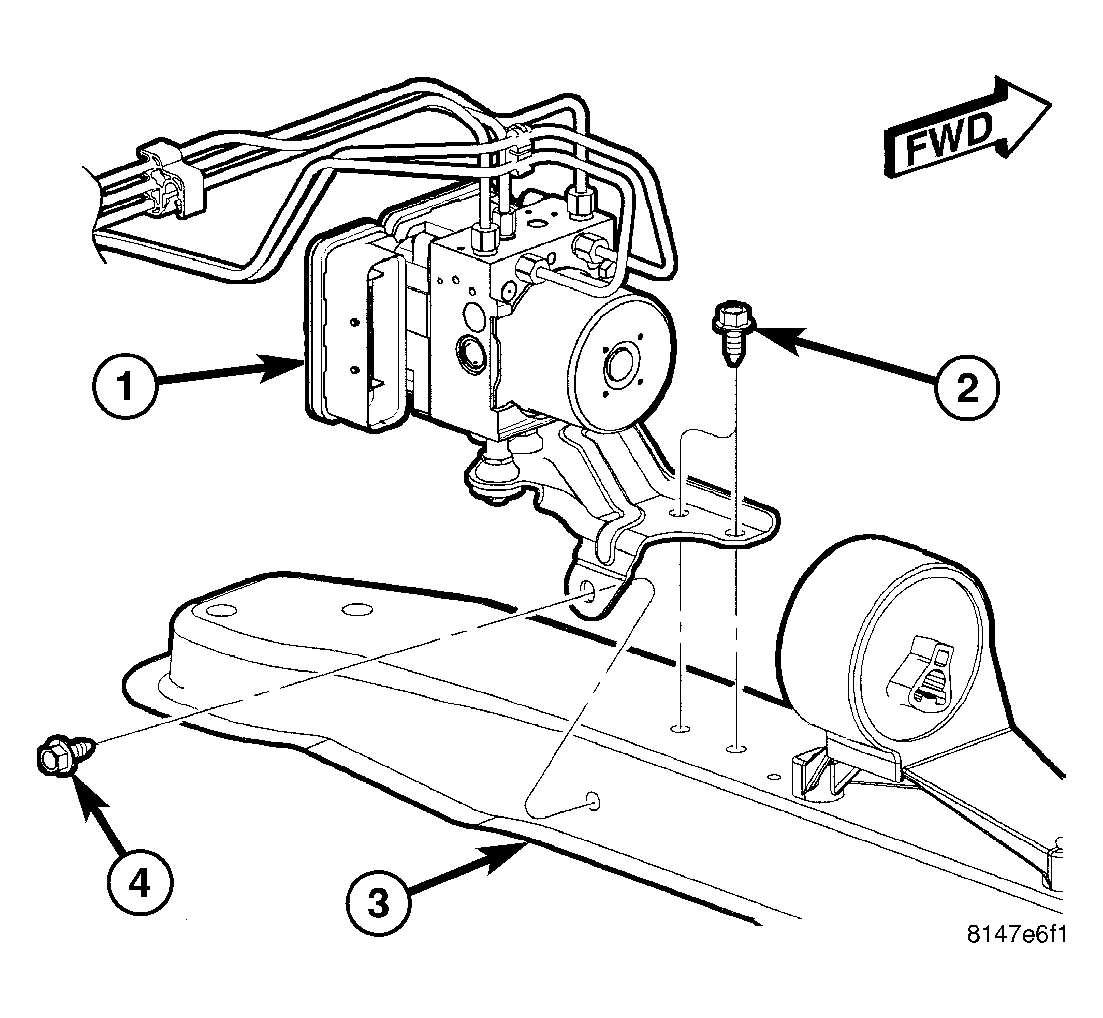

Fig 7: ICU Mounting

Courtesy of DAIMLERCHRYSLER CORP.

1 - ICU

2 - UPPER MOUNTING SCREW

3 - LOWER RADIATOR SUPPORT

4 - LOWER MOUNTING SCREW

To separate the ABM from the HCU, (Refer to BRAKES/HYDRAULIC/MECHANICAL/ICU (INTEGRATED CONTROL UNIT) - DISASSEMBLY .
