Emergency Release Cable: Removal

Remove the decklid latch cover. See Fig 1.

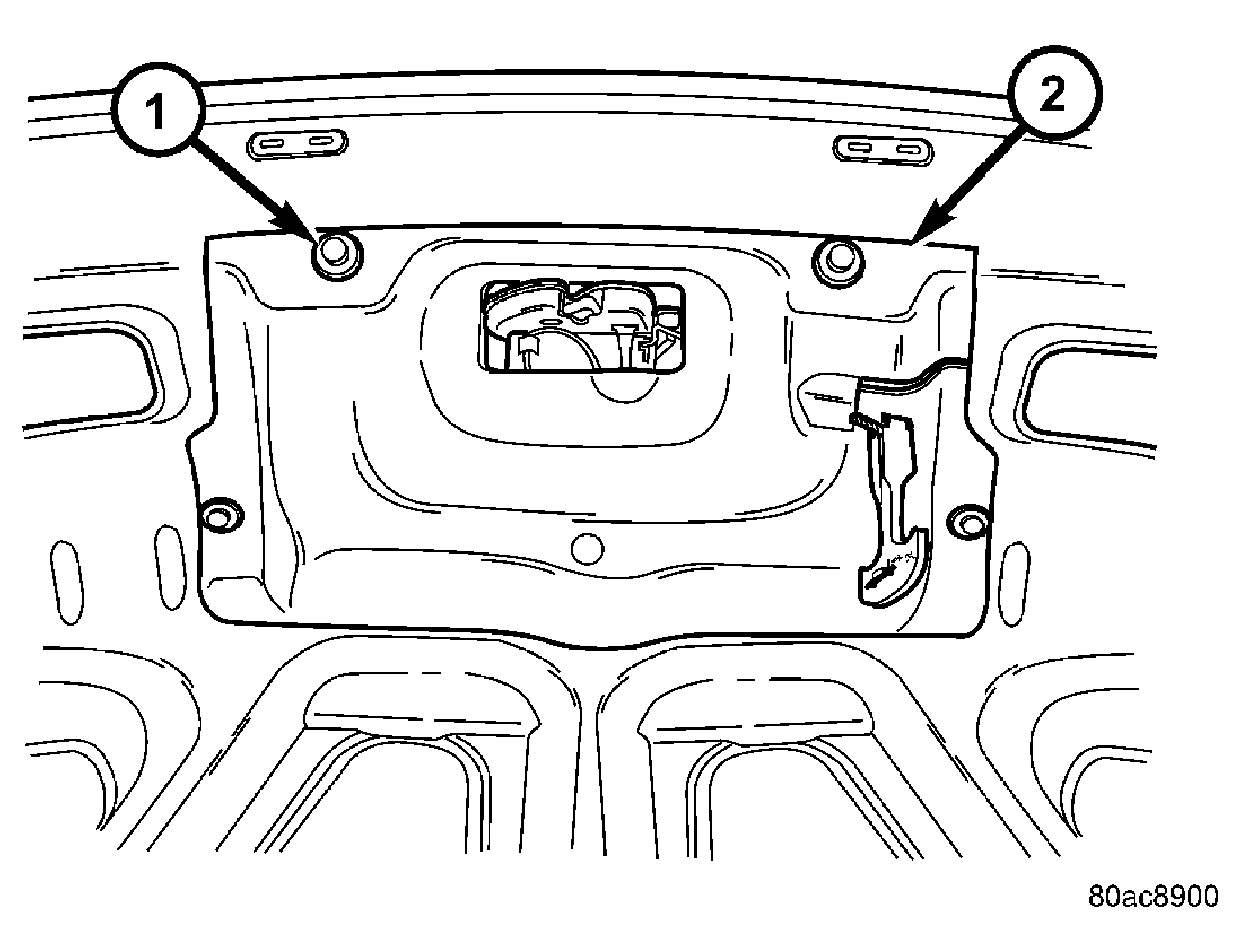

Fig 1: Decklid Latch Cover
Courtesy of DAIMLERCHRYSLER CORP.

1 - Push pin

2 - Decklid latch cover
Unclip cable and handle assembly. See Fig 2.

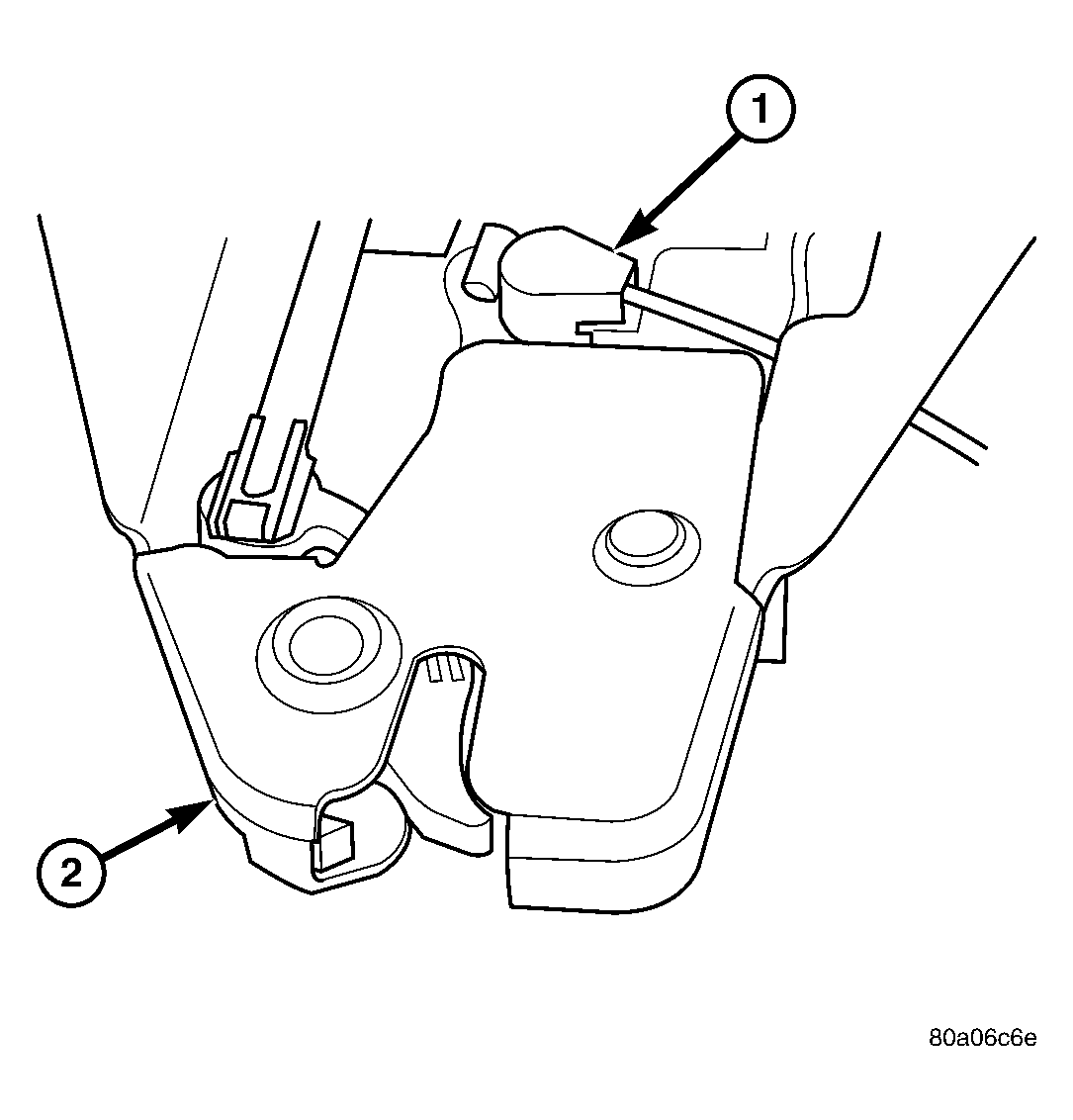

Fig 2: Emergency Release Cable

GC0031347

Courtesy of DAIMLERCHRYSLER CORP.

1 - Release Cable Clip

2 - Decklid Latch
