Driver Seat Switch: Removal

  1. Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
    WARNING: SOME VEHICLES ARE EQUIPPED WITH SIDE AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  2. Remove the seat cushion side shield from the front seat. See Fig 1. Refer to INTERIOR/EXTERIOR for the procedure.

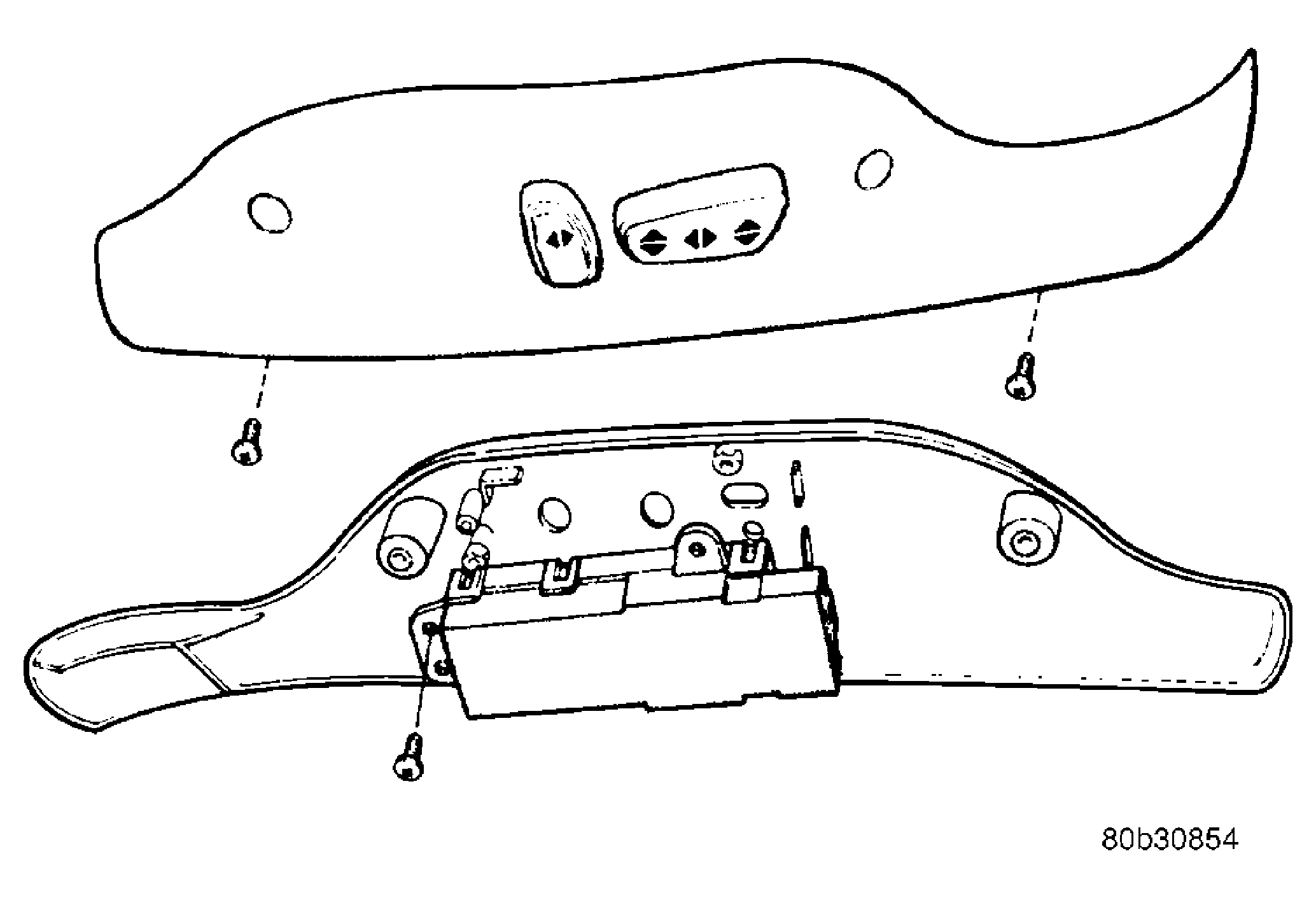

    Fig 1: Power Seat Switch and Seat Side Shield
    GC0032194Courtesy of DAIMLERCHRYSLER CORP.
  3. On hardtop models, remove the knobs from the seat switch by gently prying straight off.
  4. Remove the switch attaching screws.
  5. Remove switch from cushion side shield
