Speed Control: Switch: Removal

The speed control switches is mounted in the steering wheel and wired through the clock spring device under the airbag module. See Fig 1.

Fig 1: Speed Control Switch

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the negative battery cable.
2. Turn off ignition.
3. Remove air bag, refer to RESTRAINTS .
4. Remove the top mounting screw. See Fig 2.

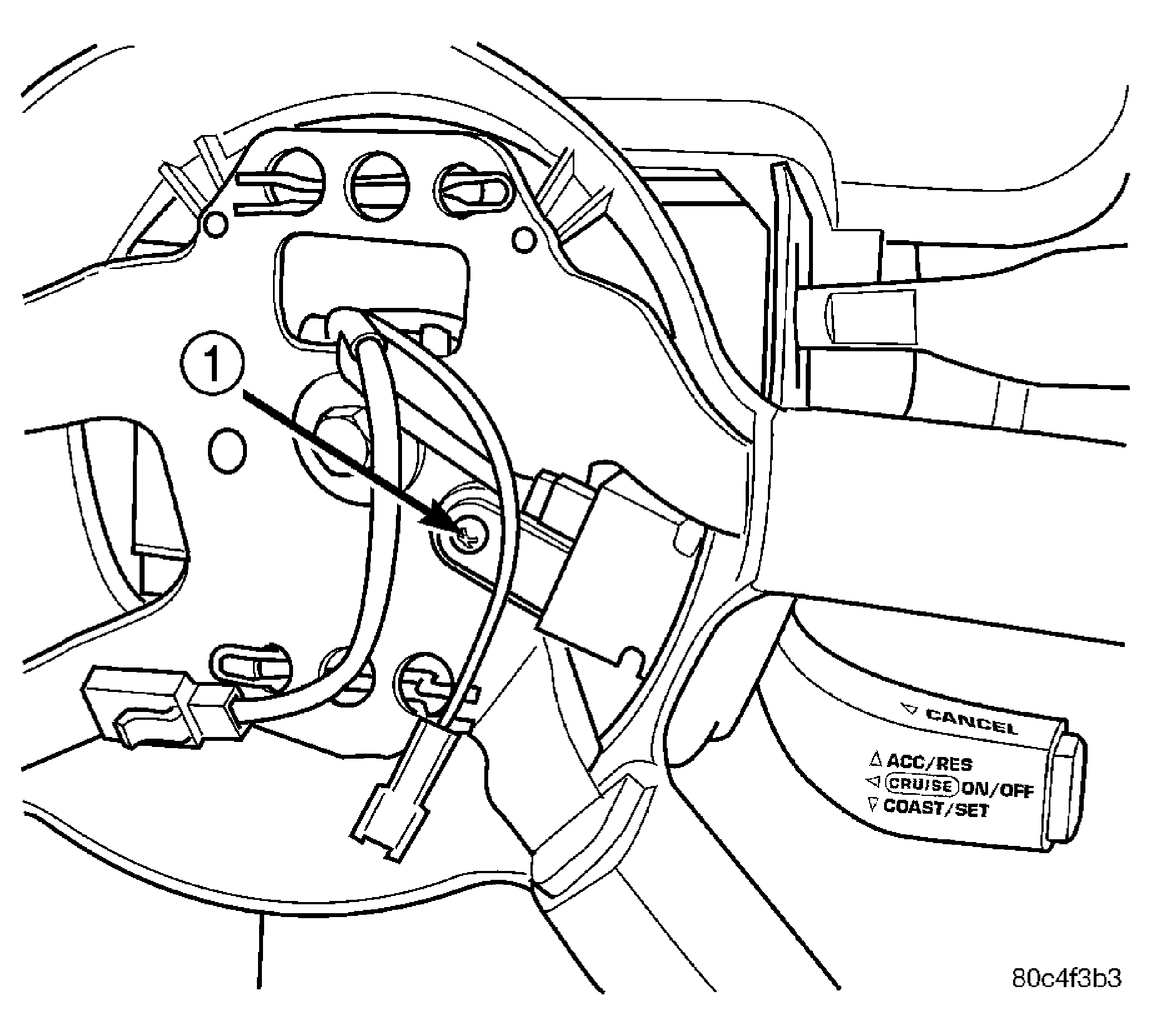

   Fig 2: Identifying Switch Top Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - TOP MOUNTING SCREW

5. Rotate steering wheel so that the switch is in the 6 o'clock position. Remove 2 screws from the back side of the speed control switch.
6. Disconnect the electrical connector.
7. Remove switch. See Fig 3.

Fig 3: Switch Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.
