Heated Seat Module: Removal

  1. Move the appropriate power seat track to its uppermost and rearward-most stop position.
  2. Disconnect and isolate the negative battery cable.

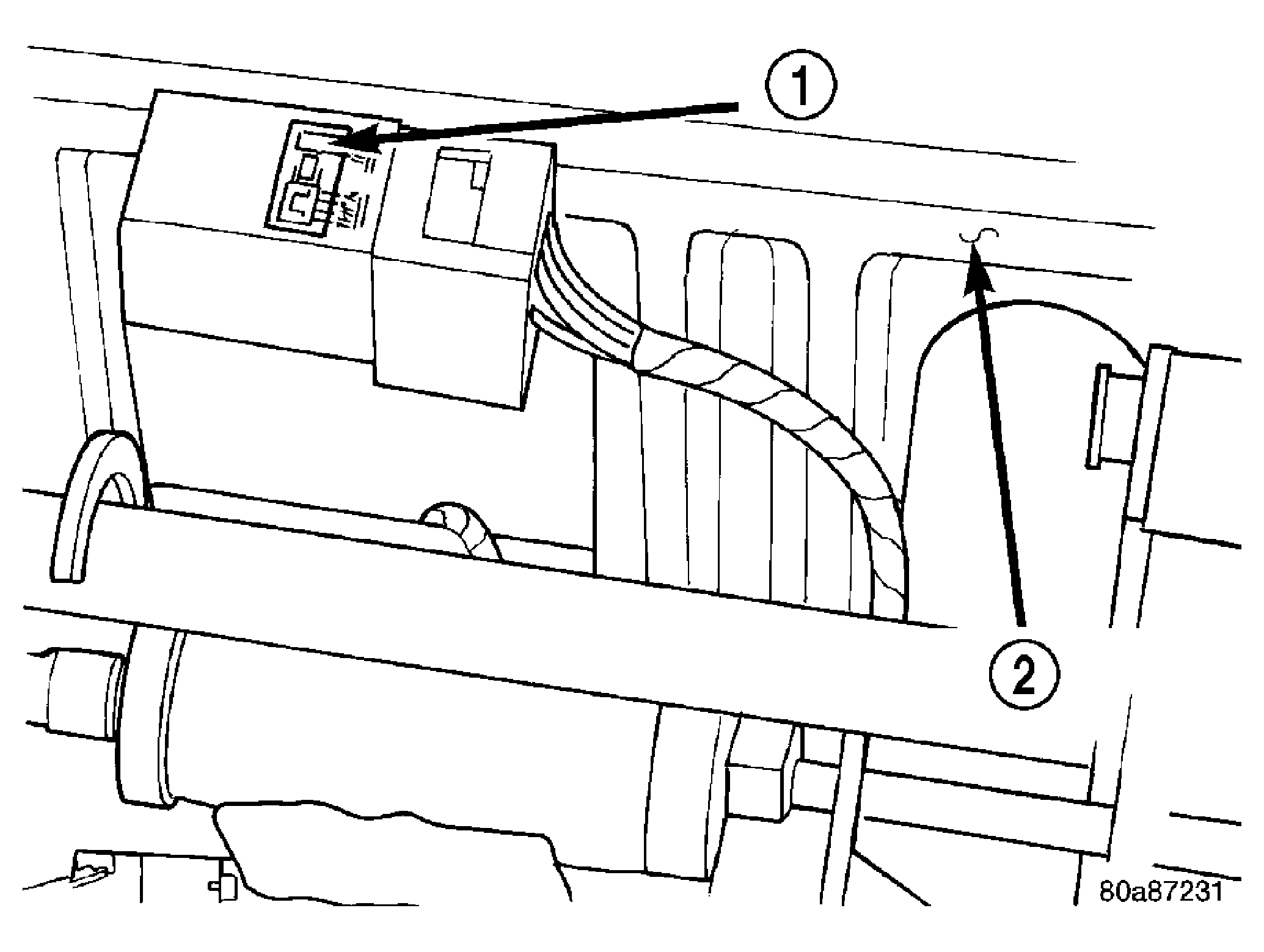

  3. Reach under the front of the seat cushion and separate the heated seat module from the seat cushion frame. See Figure.
  4. Disconnect the wire harness connector from the connector receptacle on the back of the heated seat module.
  5. Remove the heated seat module from the vehicle.
