Relay Block

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

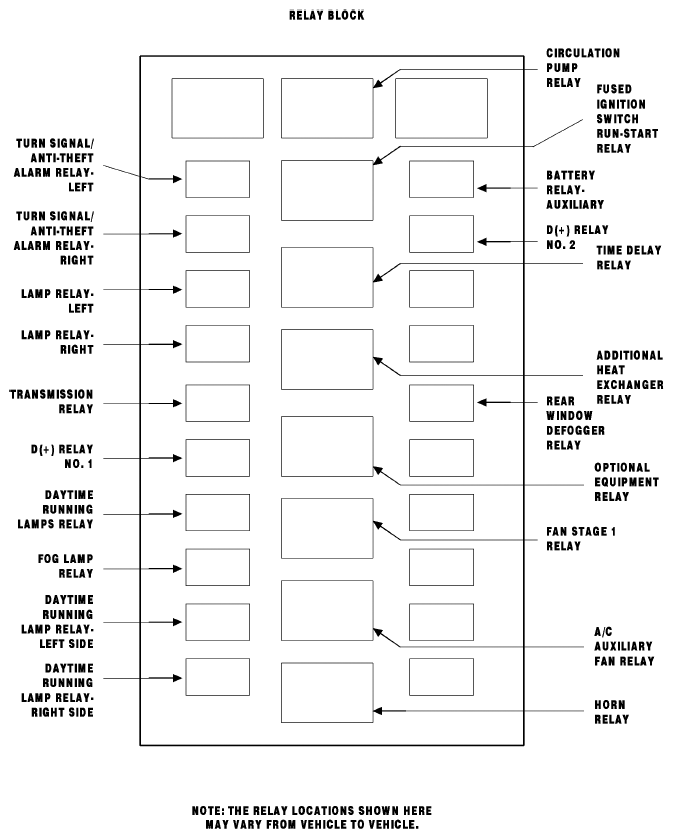

Fig 1: Identifying Relay Block Connector Pinouts (1 Of 2)
G04763021Courtesy of CHRYSLER

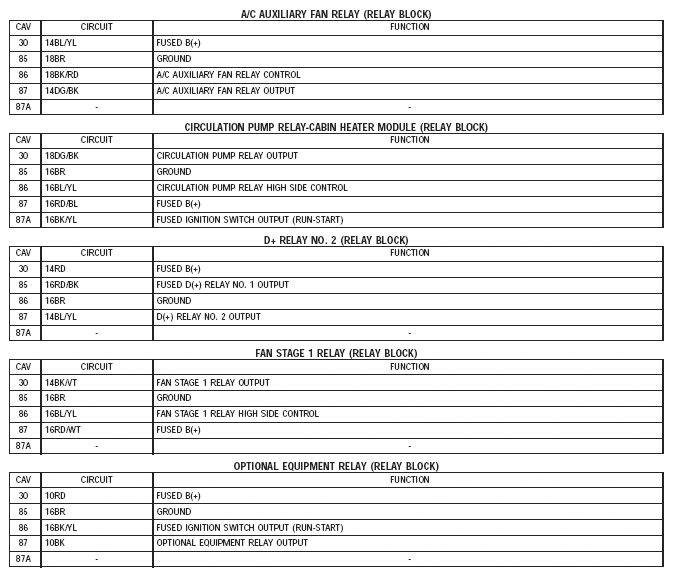

Fig 2: Identifying Relay Block Connector Pinouts (2 Of 2)
G04763022Courtesy of CHRYSLER
