Remote Keyless Entry Module - Black 6 Way

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

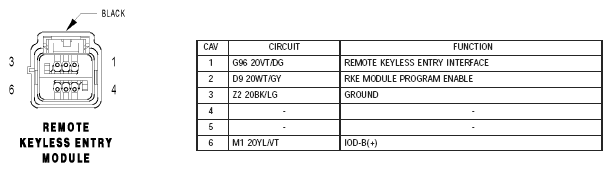

Fig 1: Identifying Connector Pinouts - Remote Keyless Entry Module - 6 Way
G04763884Courtesy of CHRYSLER
