Powertrain Control Module C3 - Black/Gray 32 Way

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

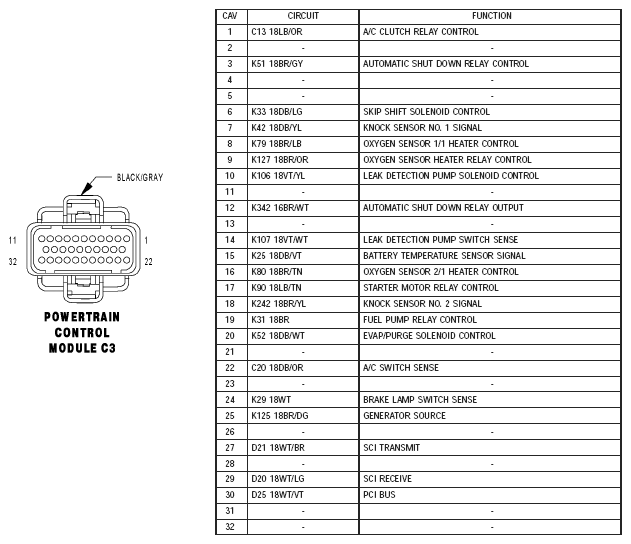

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C3 - 32 Way
G04763876Courtesy of CHRYSLER
