Installation - 2.7L

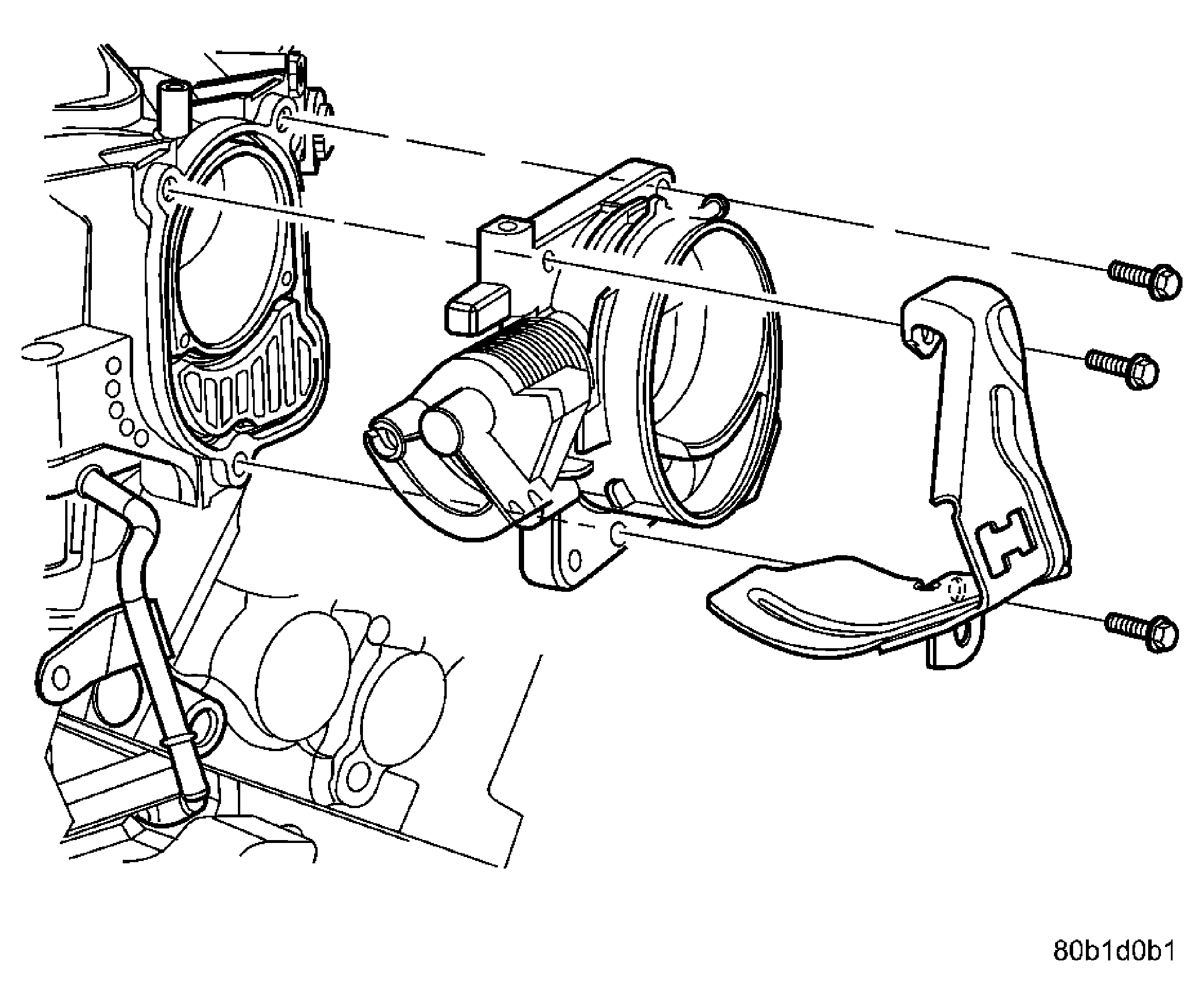

  1. Loose install 2 throttle body bolts (upper right and lower bolt). See Figure.
  2. Install the throttle cable bracket.

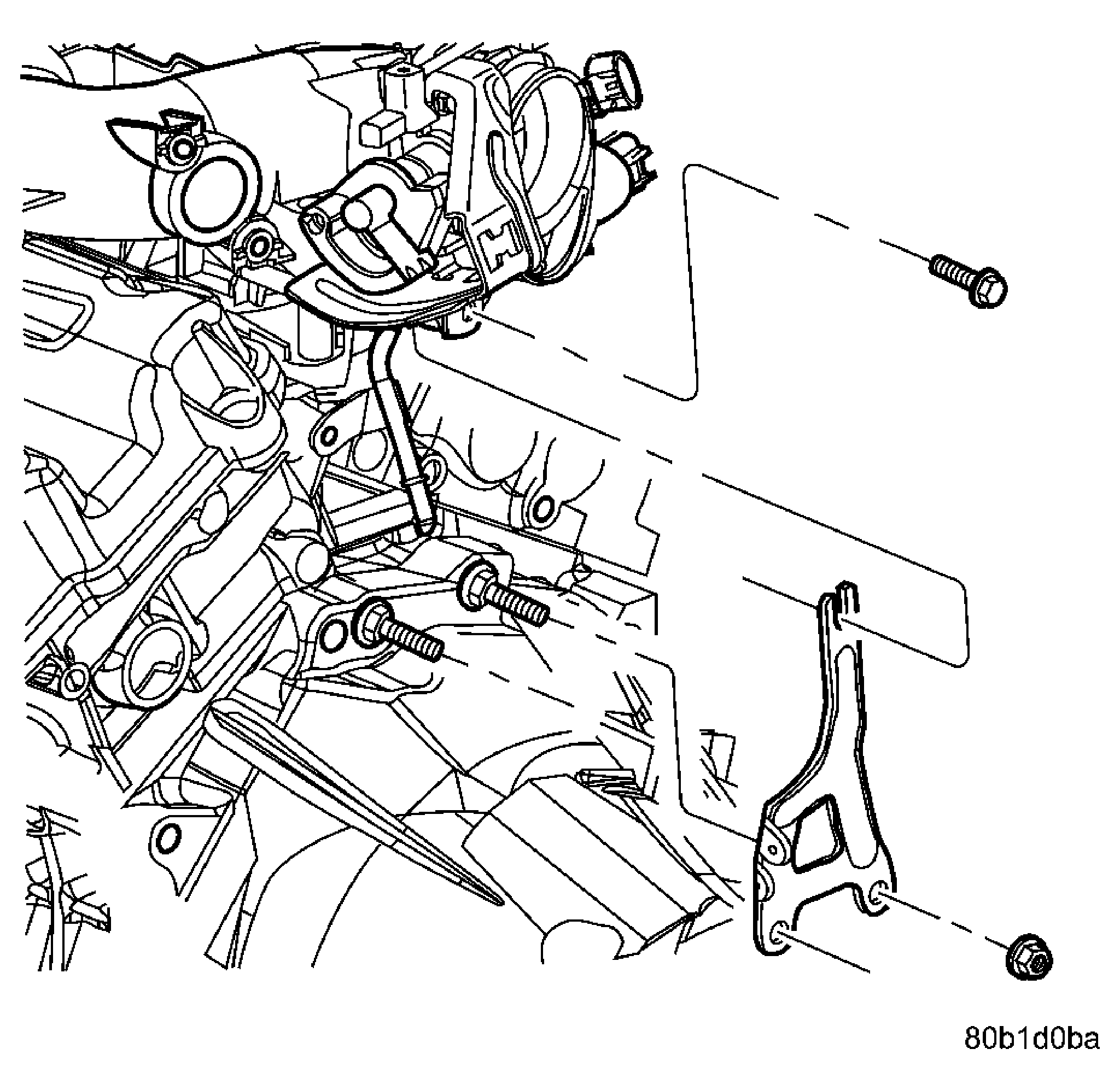

  3. Install the third throttle body bolt and the throttle body support bracket to the bottom of the throttle body. See Figure. Tighten the lower support bracket bolts to 31.1 N.m (23 ft. lbs.) torque.
  4. Tighten throttle body bolts to 13.6 N.m (120 in. lbs.) torque.
  5. Hold throttle lever in wide open throttle position. Install throttle cable and speed control cable. See Figure.

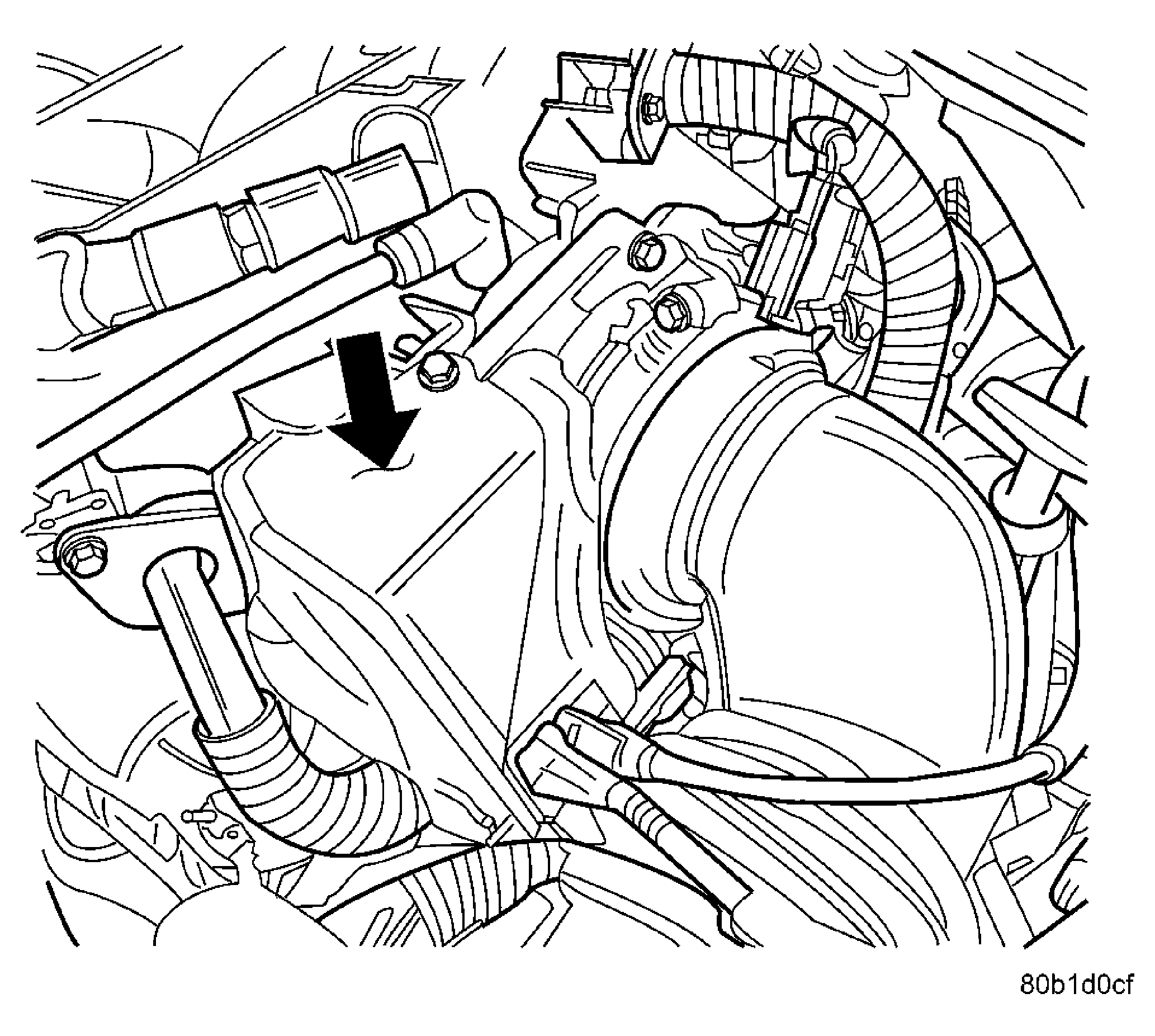

  6. Install the throttle cable shield. See Figure.
  7. Connect electrical connectors to throttle body. See Figure.
  8. Install clean air hose to throttle body.
  9. Connect negative cable to battery.
