Blower Motor: Removal: Notes

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Lower Right Instrument Panel
GC0033277Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the lower instrument panel cover (2) from the instrument panel (1). (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL) .

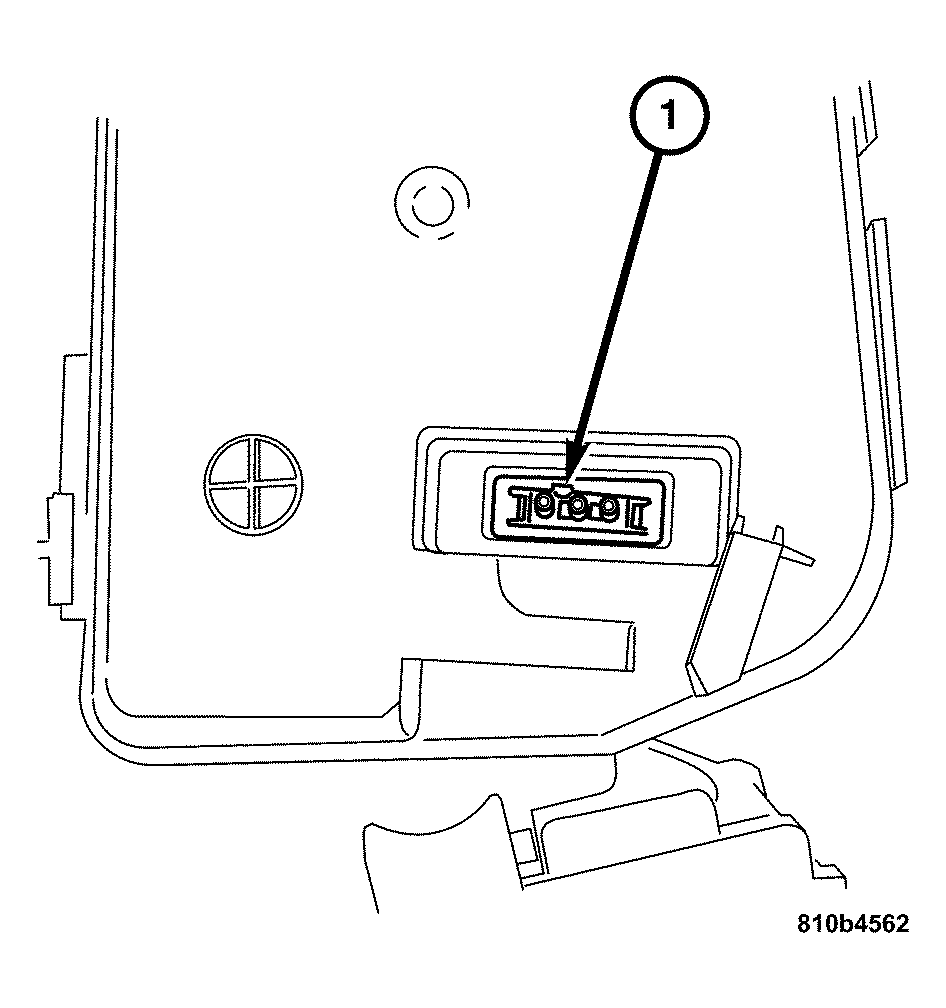

    Fig 2: Locating Blower Motor Electrical Connector
    GC0033537Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect the blower motor electrical connector (1) from the relief in the blower motor door.

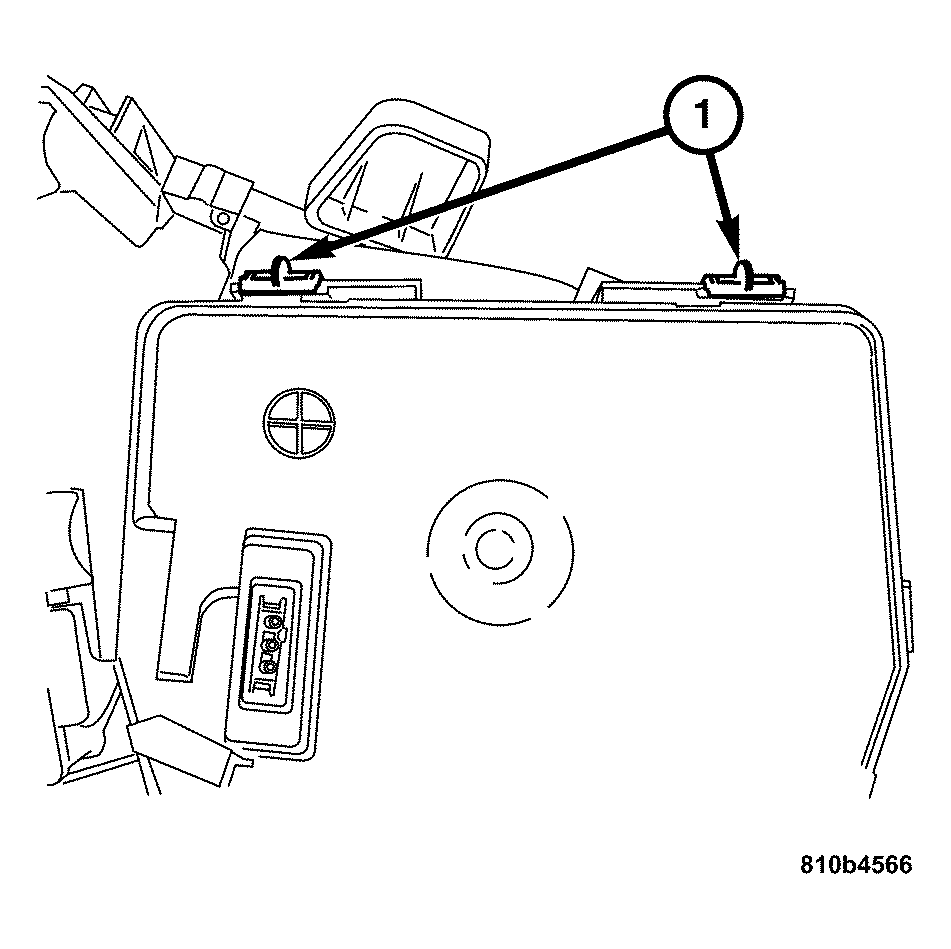

    Fig 3: Locating Blower Motor Door Catch Mounts
    GC0033538Courtesy of DAIMLERCHRYSLER CORP.
  3. Slide the blower motor door catch mounts (1) to the sides.
  4. Swing the blower motor door down.

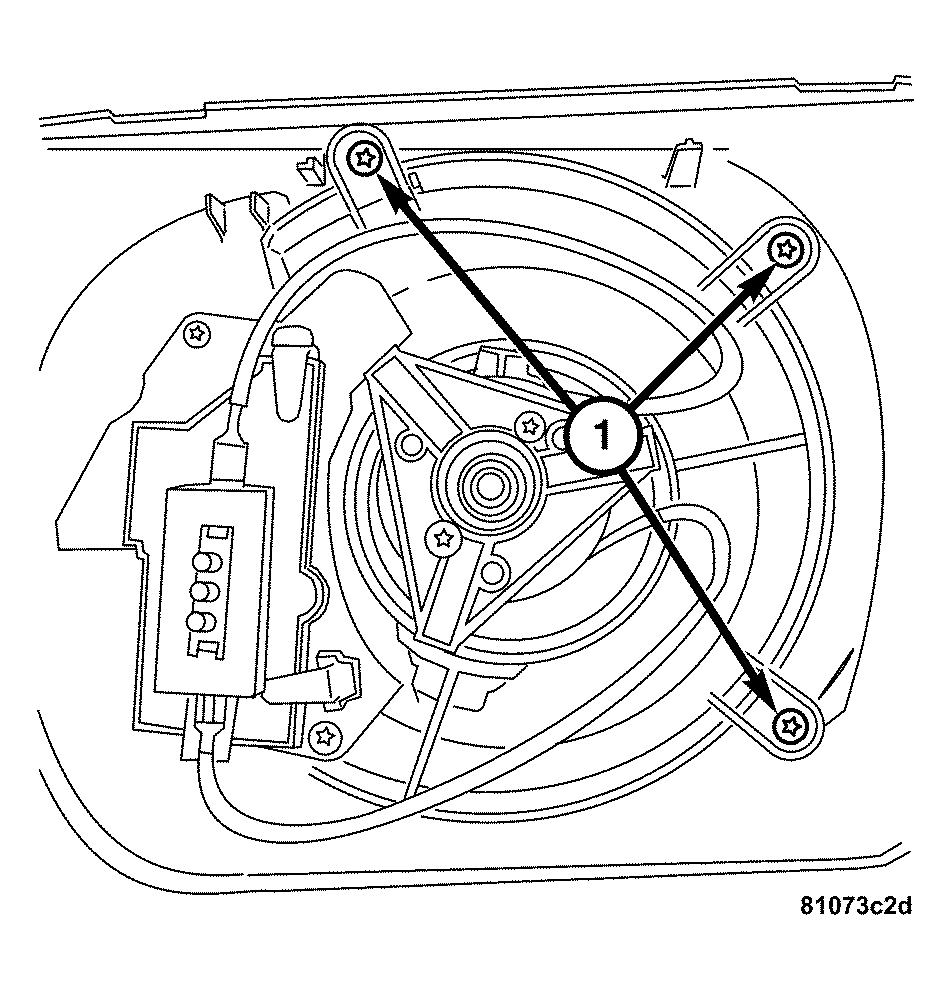

    Fig 4: Removing/Installing Blower Motor
    GC0033547Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the screws (1) attaching the blower motor to the heater housing.
  6. Remove the blower motor and squirrel cage as an assembly.
