Special Tools: Fuel

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

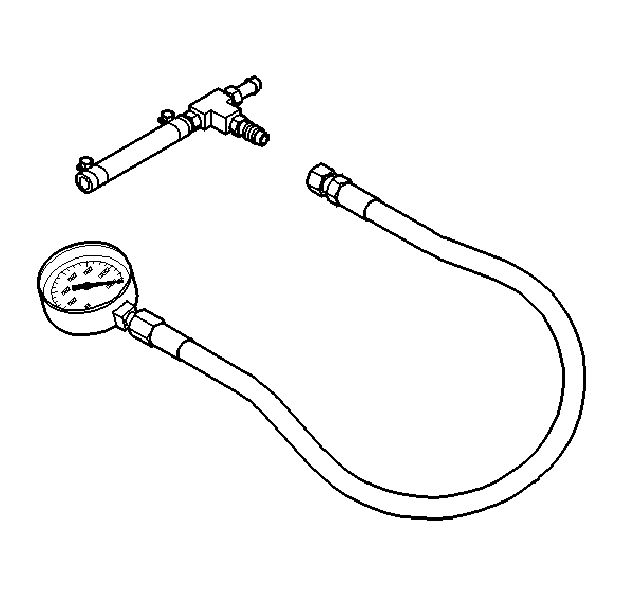

Fig 1: Test Kit, Fuel

Courtesy of DAIMLERCHRYSLER CORP.

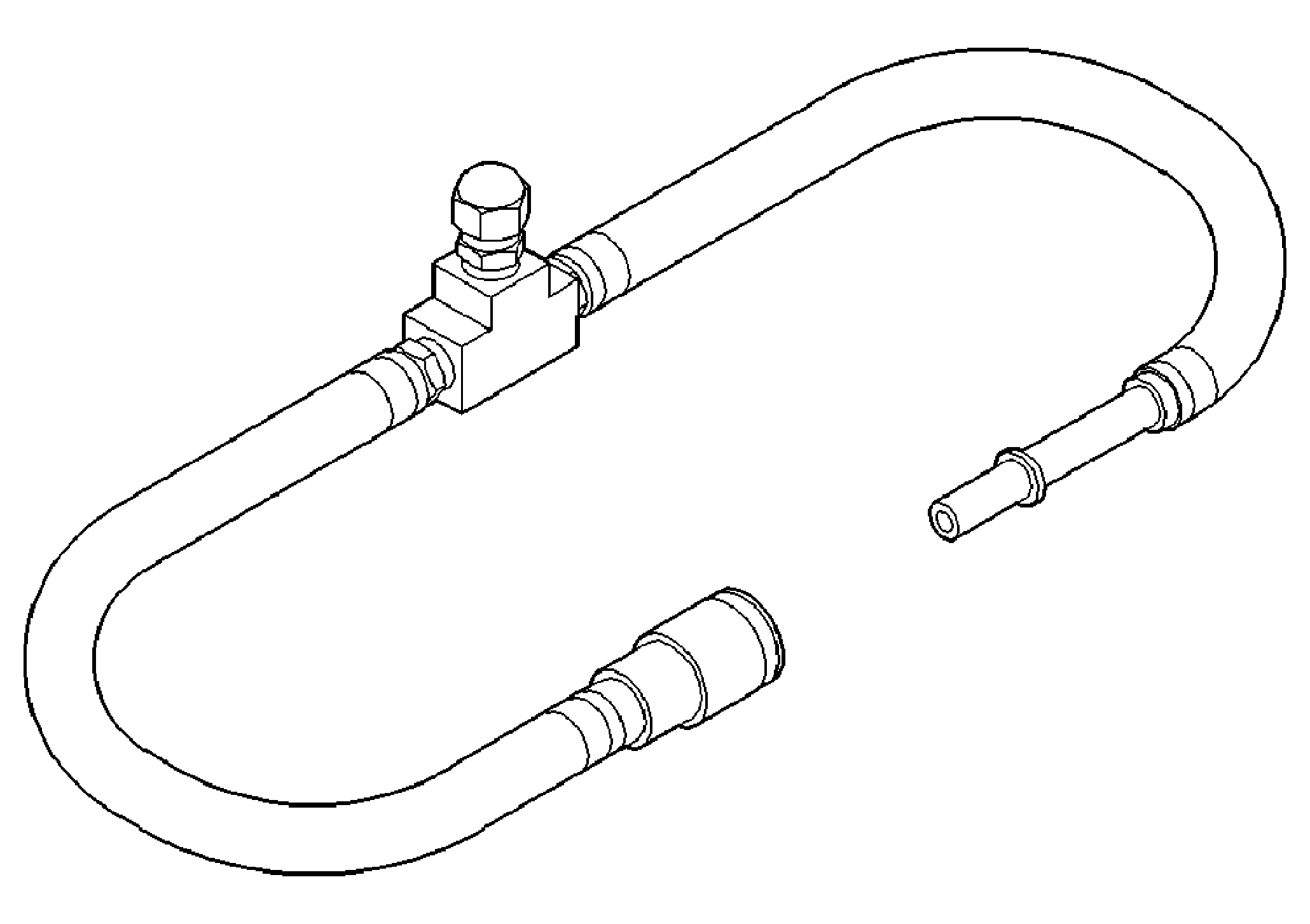

Fig 2: Adapters, Fuel Pressure Test-6539 and/or 6631

Courtesy of DAIMLERCHRYSLER CORP.

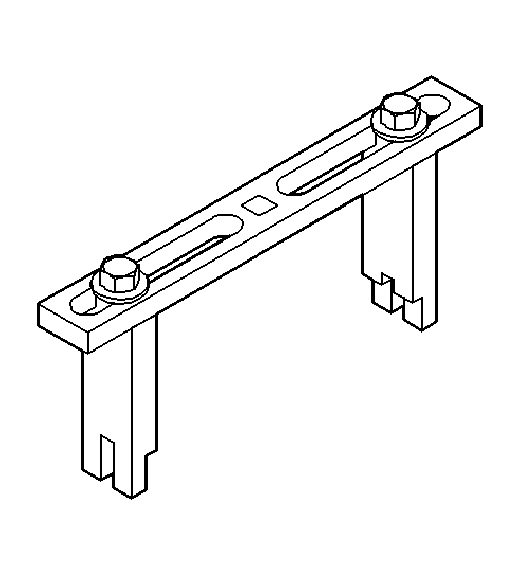

Fig 3: Spanner Wrench-6856

Courtesy of DAIMLERCHRYSLER CORP.

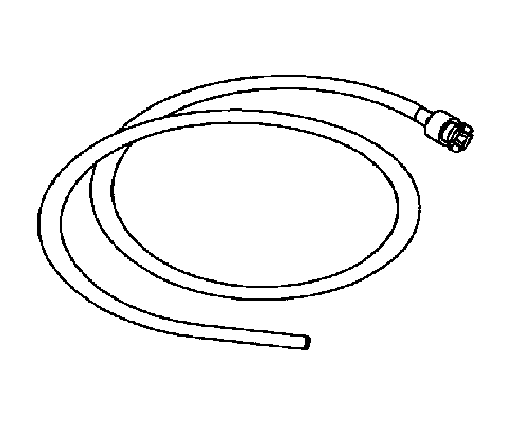

Fig 4: Fuel Line Adapter 1/4

Courtesy of DAIMLERCHRYSLER CORP.

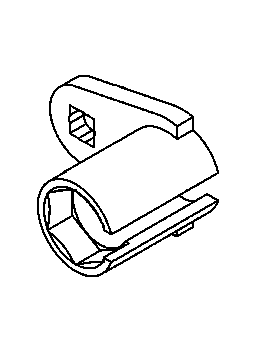

Fig 5: O2S (Oxygen Sensor) Removal/Installer-C4907

Courtesy of DAIMLERCHRYSLER CORP.

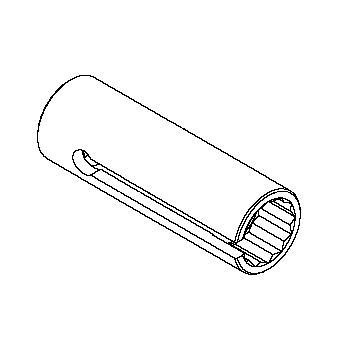

Fig 6: Oxygen sensor tool

Courtesy of DAIMLERCHRYSLER CORP.
